Evaluation of block-sequential regularized expectation maximization reconstruction of 68Ga-DOTATOC, 18F-fluoride, and 11C-acetate whole-body examinations acquired on a digital time-of-flight PET/CT scanner
EJNMMI Physics volume 7, Article number: 40 (2020)
Block-sequential regularized expectation maximization (BSREM) is a fully convergent iterative image reconstruction algorithm. We hypothesize that tracers with different distribution patterns will result in different optimal settings for the BSREM algorithm. The aim of this study was to evaluate the image quality with variations in the applied β-value and acquisition time for three positron emission tomography (PET) tracers. NEMA image quality phantom measurements and clinical whole-body digital time-of-flight (TOF) PET/computed tomography (CT) examinations with 68Ga-DOTATOC (n = 13), 18F-fluoride (n = 10), and 11C-acetate (n = 13) were included. Each scan was reconstructed using BSREM with β-values of 133, 267, 400, and 533, and ordered subsets expectation maximization (OSEM; 3 iterations, 16 subsets, and 5-mm Gaussian post-processing filter). Both reconstruction methods included TOF and point spread function (PSF) recovery. Quantitative measures of noise, signal-to-noise ratio (SNR), and signal-to-background ratio (SBR) were analysed for various acquisition times per bed position (bp).
The highest β-value resulted in the lowest level of noise, which in turn resulted in the highest SNR and lowest SBR. Noise levels equal to or lower than those of OSEM were found with β-values equal to or higher than 400, 533, and 267 for 68Ga-DOTATOC, 18F-fluoride, and 11C-acetate, respectively. The specified β-ranges resulted in increased SNR at a minimum of 25% (P < 0.0001) and SBR at a maximum of 23% (P < 0.0001) as compared to OSEM. At a reduced acquisition time by 25% for 68Ga-DOTATOC and 18F-fluoride, and 67% for 11C-acetate, BSREM with β-values equal to or higher than 533 resulted in noise equal to or lower than that of OSEM at full acquisition duration (2 min/bp for 68Ga-DOTATOC and 18F-fluoride, 3 min/bp for 11C-acetate). The reduced acquisition time with β 533 resulted in increased SNR (16–26%, P < 0.003) and SBR (6–18%, P < 0.0001 (P = 0.07 for 11C-acetate)) compared to the full acquisition OSEM.
Within tracer-specific ranges of β-values, BSREM reconstruction resulted in increased SNR and SBR with respect to conventional OSEM reconstruction. Similar SNR, SBR, and noise levels could be attained with BSREM at relatively shorter acquisition times or, alternatively, lower administered dosages, compared to those attained with OSEM.
PET images are usually reconstructed by the clinical standard-of-care method ordered subsets expectation maximization (OSEM). A known shortcoming of maximum likelihood reconstruction, methods like OSEM, is excessive noise in the images if too many iterations are performed, and insufficient convergence associated with underestimated radioactivity concentrations especially in small lesions and those that are obscured by larger areas of uptake when too few iterations are performed. Regularization is commonly achieved by terminating the iterative process prior to convergence, but the recently developed regularizing technique instead utilizes a penalty function that prohibits excessive noise. The block-sequential regularized expectation maximization (BSREM) algorithm (Q.Clear; GE Healthcare) incorporates a relative difference penalty that balances the properties of a quadratic and non-quadratic penalty, i.e. spatial smoothness and preservation of edges [1,2,3,4]. The algorithm allows every single image voxel to achieve full convergence [3, 5]. Hence, in contrast to OSEM, BSREM offers only one controlling reconstruction parameter that is available to its users, a global regularization parameter denoted β .
In a previous study evaluating 18F-FDG on the same digital time-of-flight (TOF) PET/CT scanner, BSREM was found to provide higher maximum standardized uptake value (SUVmax) values and improved signal-to-noise ratio (SNR) and signal-to-background ratio (SBR) compared to OSEM at matched levels of noise . The clinical benefit of the algorithm for 18F-FDG PET using other PET/CT scanner models has previously been reported [8,9,10,11,12]. Also, penalized reconstruction of 90Y-PET data acquired on a conventional Discovery 710 PET/CT scanner resulted in a higher contrast-to-noise ratio than OSEM and penalized reconstruction images received higher scores by the radiologists . Additionally, an 18F-fluoride PET/CT study, performed on a Discovery 690 scanner, showed that image acquisition of 1 min/bp and BSREM resulted in similar quality as 3 min/bp images reconstructed with standard methods .
In the present study, we investigated the behaviour of BSREM in relation to OSEM regarding image quality in terms of noise, SNR, and SBR, with three non-18F-FDG PET tracers regularly used in the clinical practice; gallium-68-DOTA-D-Phe1-Tyr3-octreotide (68Ga-DOTATOC), carbon-11-acetate (11C-acetate), and 18F-fluoride. 68Ga-DOTATOC is a radiolabelled somatostatin analogue used for imaging of neuroendocrine tumours [13,14,15]. 11C-acetate, similarly to 11C- and 18F-choline, can be used for imaging of the cell membrane lipid metabolism that is typically increased in prostate cancer cells [16,17,18,19,20], and 18F-fluoride is used for bone imaging, especially for the detection and monitoring of bone metastases in prostate cancer [21, 22]. These three tracers were chosen for evaluation because they are used in the clinical routine and exhibit characteristic uptake patterns that are clearly different from the typical FDG distribution, ranging from very specific uptake in bone lesions combined with very low uptake in soft tissues for 18F-fluoride, high lesion uptake accompanied by high uptake in healthy organs such as liver and kidney but virtually no signal elsewhere for 68Ga-DOTATOC, to a more or less homogeneous distribution pattern for 11C-acetate. We hypothesized that these varying tracer distribution patterns will require different settings for the BSREM algorithm to achieve optimum image quality in terms of noise, SNR, and SBR. The purpose of the study was to evaluate the image quality with variations in the applied β-value and acquisition time.
Materials and methods
All patient data analyses were performed on anonymized PET/CT data collected from existing records and the reconstructed images were not used for clinical image reading. The study was approved by the regional Ethical Review Authority (Dnr, 2019-00092).
A National Electrical Manufacturers Association (NEMA) image quality phantom experiment with 68Ga was performed and compared to the results from a previous study with 18F acquired using similar settings [6, 7]. The phantom background region and spheres were filled with activity concentrations of, respectively, 5.05 kBq/ml and 21.78 kBq/ml of 68Ga, and 2.69 kBq/ml and 10.77 kBq/ml of 18F, yielding a 4.3:1 and 4.0:1 sphere-to-background concentration ratio. The phantom was scanned until 100 million prompt counts were acquired on both occasions.
Clinical whole-body PET/CT examinations with 68Ga-DOTATOC (n = 13), 18F-fluoride (n = 10), and 11C-acetate (n = 13) were analysed. The 68Ga-DOTATOC cohort included patients with small intestinal neuroendocrine tumours (NET), lung-NET, rectal-NET, gastric-NET, pancreatic-NET, carcinoma of unknown primary, and medullary thyroid cancer diagnosis. The 18F-fluoride and 11C-acetate cohorts both included patients with prostate cancer and verified bone metastases, and relapse after primary treatment such as radical prostatectomy or radiation therapy. All examinations were acquired in 3-dimensional mode using a digital TOF Discovery MI PET/CT (GE Healthcare) with a 4-ring setup, providing axial and transaxial FOV of 20 and 70 cm, respectively. Further scanner specifications include lutetium yttrium oxyorthosilicate detectors coupled to silicon photomultipliers, a timing resolution of circa 370 ps, a sensitivity of 14 cps/kBq, and an intrinsic spatial resolution of approximately 4.0 mm at the centre of the FOV . The PET/CT examinations were performed with an acquisition time of 3 min/bp (11C-acetate) or 2 min/bp (68Ga-DOTATOC, 18F-fluoride) from the mid-thigh to the base of the skull.
Images were reconstructed by using OSEM with 3 iterations, 16 subsets, and a 5-mm Gaussian post-processing filter, and BSREM with β-values of 133, 267, 400, and 533. TOF and point spread function (PSF) were applied with both reconstruction methods. A matrix size of 256 × 256 was used, resulting in a voxel size of 2.73 × 2.73 × 2.79 mm3. Furthermore, list-mode files were re-binned by using the first 2 and 1 min/bp (11C-acetate) or 1.5 and 1 min/bp (68Ga-DOTATOC, 18F-fluoride) of the acquired data and reconstructed using the abovementioned settings.
NEMA image quality phantom results were analysed using in-house-developed software in Matlab (MathWorks) as previously described [6, 7]. Background variability and contrast recovery were calculated according to the NEMA standards protocol .
Analyses of clinical data were performed on an Advantage Workstation (Volume Viewer 4.7 ext. 8; GE Healthcare) with the PET/CT Review software. Lesion metrics were derived using a 3-dimensional segmentation at 41% of the maximum voxel value and reference values were obtained from a spherical volume of interest (approximately 3 cm in diameter) placed in the right lobe of the liver with visually confirmed uniform uptake. The lesion delineations were performed in the OSEM reconstruction of each examination and thereafter the location of the maximum voxel value was transferred to the respective BSREM reconstructions, where new volumes of interest were redefined at a 41% threshold. The total number of lesions included in the analysis was 38 with 68Ga-DOTATOC, 33 with 18F-fluoride, and 36 with 11C-acetate. Level of noise was measured in the liver tissue and calculated as standard deviation (SD) divided by the mean standardized uptake value (SUVmean) of the liver reference sphere (Eq. 1). SNR was defined as the lesion SUVmax to noise level ratio and SBR as lesion SUVmax to liver reference SUVmean ratio (Eqs. 2 and 3). The optimal β-value was defined as the value that yielded noise equivalent to that of OSEM.
Values are presented as mean ± SD. A paired non-parametric two-tailed t test (Wilcoxon’s signed rank test) was used when comparing BSREM to OSEM with considered statistical significance for P values less than 0.05. Spearman rank correlation (r) was used to determine the degree of association between relative difference in SUV and lesion volume.
NEMA image quality phantom

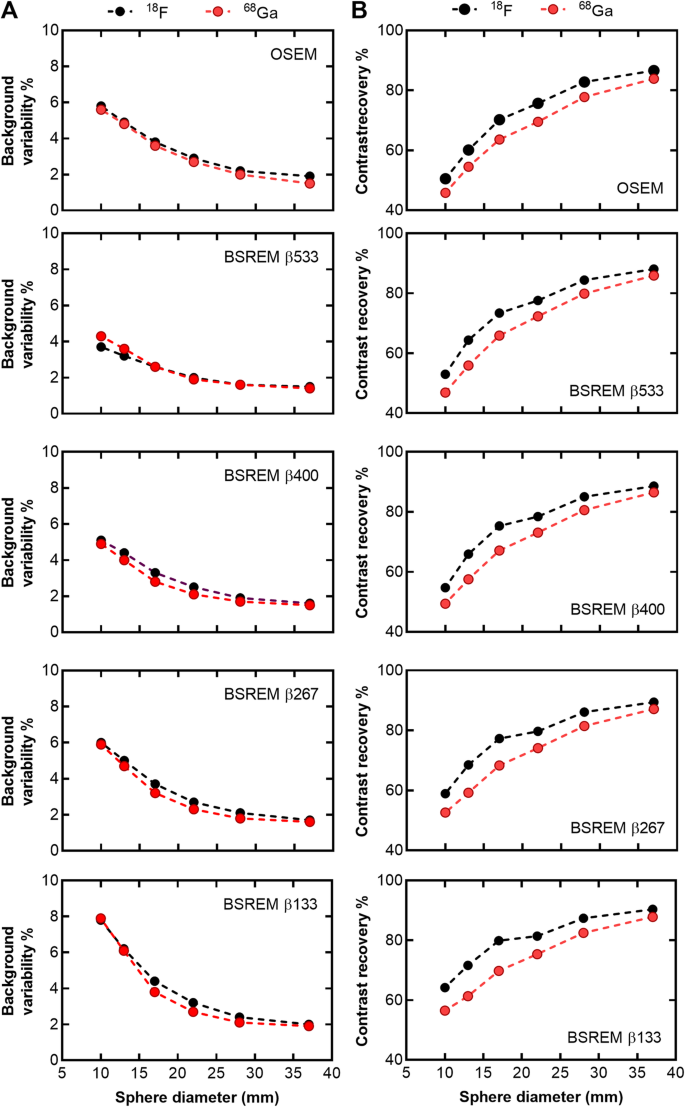

NEMA phantom results are displayed in Fig. 1. Background variability was similar for 18F and 68Ga for all reconstruction methods and sphere sizes. The background variability increased with decreasing β-value. In contrast recovery, there was a consistent difference between 18F and 68Ga for all reconstruction methods and sphere sizes with a slightly lower contrast recovery for 68Ga than 18F.
An example of a 68Ga-DOTATOC PET scan is shown in Fig. 2, illustrating the effect of different reconstruction methods. The injected activity was 2.3 ± 0.4 MBqkg−1 (range, 1.8–2.8 MBqkg−1) of 68Ga-DOTATOC and the uptake time before examination was 62 ± 4 min (range, 59–72 min). The mean liver reference volume was 18.5 ± 0.8 mL (range, 16.8–19.6 mL) and the SUVmean 6.2 ± 1.5 (range 3.0–8.0) with OSEM (Table 1). The mean lesion volume was 7.6 ± 15.2 mL (range, 0.5–95.2 mL). Noise equivalence to OSEM was found with β 400 (− 1%, P > 0.99) with a resulting significant increase of SUVmax, SNR, and SBR by 23%, 25%, and 23%, respectively (P < 0.0001) (Figs. 3a and 4a, d, g). There was a negative correlation between relative difference in SUVmax and lesion volume when comparing BSREM with OSEM (r = − 0.6 measured over the entire cohort). The difference was greater in small lesion sizes, and for volumes larger than approximately 3 mL the relative difference in SUVmax did not change with volume (using β 400, r = − 0.8, − 0.1, respectively) (Fig. 5a).
The noise level increased with a shorter acquisition; with BSREM β 400 and 1.5 min/bp, the noise was 12% (P = 0.002) higher than that of OSEM at full acquisition (2 min/bp). However, using β 533 (1.5 min/bp) reduced the noise below that of OSEM (2 min/bp) (− 4%, P = 0.1) while SUVmax, SNR, and SBR increased by 20%, 26%, and 18%, respectively (P < 0.0001) (Fig. 4a, d, g). At a 50% reduction in scan duration, β 400 (1 min/bp) resulted in similar SNR as compared to OSEM at full acquisition (2 min/bp) (3%, P = 0.5), while maintaining a higher level of SBR (Table 2, Fig. 4d, g). It should be noted that any chosen β-value in this study led to a higher SBR than OSEM irrespective of scan duration.
As shown by the 18F-fluoride PET example in Fig. 6, the different reconstruction methods resulted in merely minor visual variations. The injected activity of 18F-fluoride was 3.0 ± 0.1 MBqkg−1 (range, 2.9–3.2 MBqkg−1) and the uptake time was 64 ± 3 min (range, 59–70 min). The mean liver reference volume was 18.5 ± 1.1 mL (range, 16.5–19.6 mL) and SUVmean 0.4 ± 0.1 (range, 0.3–0.7) using OSEM (Table 1). The mean lesion volume was 4.3 ± 5.3 mL (range, 0.6–28.9 mL) with SUVmax 40.4 ± 24.5 (range, 13.7–108.4). A noise level equivalent to OSEM was found to lie between β 400 and β 533, with a scan duration of 2 min/bp for both reconstruction methods. β 400 resulted in a significantly increased level of noise whereas β 533 resulted in significantly lower noise than OSEM (12%, P = 0.0002 and − 10%, P = 0.0039, respectively). Both β-values resulting in an increased SUVmax, SNR, and SBR by 11–30% (P < 0.002) as compared to OSEM (Figs. 3b and 4b, e, h). A negative correlation (r = − 0.6) was found between relative percentage difference in SUVmax (comparing BSREM with OSEM) and lesion volume when including the entire cohort. The difference was greater in small lesion sizes with a mean increase of SUVmax by 27% for sizes less than 3 mL and 18% for sizes larger than 3 mL with BSREM β 400 versus OSEM (r = − 0.6, − 0.7, respectively) (Fig. 5b).
Reducing image acquisition time by 25% (30 sec) to 1.5 min/bp resulted in a 3% (P = 0.9) increase of noise using β 533 compared to OSEM at full acquisition duration (2 min/bp). Despite the shorter acquisition time, SUVmax, SNR, and SBR still improved by 17%, 16%, and 13%, respectively (P < 0.002), compared to OSEM at full acquisition duration (Fig. 4b, e, h). Reducing the β-value from 533 to 400 (1.5 min/bp) resulted in similar SNR as compared to OSEM at full acquisition (2 min/bp) (− 4%, P = 0.2), with a sustained higher level of SBR (Fig. 4e, h). With the limited range of β-values tested in this study, it was no longer possible to reach a noise level or SNR similar to OSEM (2 min/bp) when the acquisition time was further shortened by another 25% using BSREM (1 min/bp). The β-values that resulted in noise or SNR equivalence to OSEM at different scan durations are summarized in Table 2. Any chosen β-value in this study resulted in a higher SBR than OSEM irrespective of scan duration.
BSREM clearly improved the image contrast and sharpness in the 11C-acetate PET images as compared with OSEM (Fig. 7). The injected activity was 4.8 ± 0.3 MBqkg−1 (range, 4.2–5.4 MBqkg−1) of 11C-acetate and the uptake time was 11 ± 1 min (range, 10–13 min). The mean liver reference volume was 18.7 ± 0.6 mL (range, 18.0–19.6 mL) and the SUVmean was 4.4 ± 1.8 (range, 1.8–8.2) measured in OSEM images (Table 1). Mean lesion volume was 4.4 ± 4.7 mL (range, 0.7–22.7 mL) with mean SUVmax 7.7 ± 2.1 (range, 4.0–12.2). Noise levels closest to those of OSEM were found with β 267 (− 6%, P = 0.02) with a resulting significant increase of SUVmax, SNR, and SBR by 23%, 32% and 23%, respectively (P < 0.0001) (Figs. 3c and 4c, f, i). There was a slight negative correlation (r = − 0.4) measured over the entire cohort between relative percentage difference in SUVmax and lesion volume comparing BSREM with OSEM. The increase of SUVmax using β 267 was 28% for lesions of sizes less than 3 mL and 17% for lesions larger than 3 mL (r = − 0.3, − 0.5, respectively) (Fig. 5c).
At a reduced acquisition time, BSREM β 267 (2 min/bp) remained closest to OSEM (3 min/bp) in terms of noise (6%, P = 0.3), with an increase of SUVmax, SNR, and SBR by 25%, 22%, and 19%, respectively (P < 0.0001) (Fig. 4c, f, i). Using 1 min/bp resulted in β 533 being noise equivalent (− 1%, P = 0.9) to OSEM (3 min/bp) with a resulting increase of SUVmax, SNR, and SBR by 12%, 19%, and 6%, respectively (P < 0.003 except for SBR P = 0.07). At a 67% reduction in scan duration, an estimated β 200 (1 min/bp) resulted in similar SNR as compared to OSEM at full acquisition (3 min/bp) (Fig. 4f). Also, the estimated β 200 (1 min/bp) resulted in a sustained higher SBR as compared to OSEM (3 min/bp) (Fig. 4i).
The objective of this study was to evaluate the relationship between BSREM and OSEM reconstruction regarding image quality with variations in the applied β-value and acquisition time, as well as investigate a potential tracer dependency of the respective β-values. Image quality was measured in terms of noise in liver tissue, SNR, and SBR. The results showed that the BSREM reconstruction algorithm allows for shorter acquisition time and/or less injected activity, as compared with OSEM, to achieve similar image quality. Prior research has demonstrated comparable results for 18F-FDG PET image reconstruction [24,25,26,27,28]. For referencing, a comparison with 18F-FDG is shown in Supplemental Figs. S1–3 using data from a previous study applying the same methodology .
The β-value for reaching noise equivalence to OSEM was found to be tracer dependent. The count statistics and uptake pattern vary between the tracers tested in this study and are likely the main reasons for the different optimal regularization parameters. Low-contrast tracers, like 11C-acetate, seem to require a lower β-value than sharp contrast tracers, like 18F-fluoride, to reach a noise level equivalent to that of OSEM. The soft tissue background uptake was low in the 18F-fluoride images (SUVmean range, 0.3–0.7), while the lesions had a substantially higher uptake; hence, the visual effect of the BSREM reconstruction was not as prominent as for the two other tracers assessed in the study. The quantitative measures were, however, significantly different to those obtained using OSEM. PET with 11C-acetate resulted in rather homogeneous uptake with a low image contrast as a consequence, allowing for a lower applied β-value without compromising the image quality in terms of increased noise, whereas 68Ga-DOTATOC resulted in a similar relation between quantitative measures based on OSEM and BSREM as for 18F-FDG (Supplemental Figure S1). Apart from the count statistics and uptake pattern variation between the tracers likely being the main reasons for the different optimal regularization parameters, the positron kinetic energy is another contributing factor. The positron range in tissue adds to the partial volume effect that will limit the image spatial resolution, and consequently the overall image quality, thus the positron range may also influence the optimal β-value. In the present study, comparison between 18F and 68Ga results obtained from NEMA image quality phantom testing showed similar background variability but slightly lower contrast recovery for 68Ga than 18F . Although some of the difference between the recovery for 18F and 68Ga may be due to experimental uncertainty, it is likely that the lower image resolution of 68Ga, due to its higher positron range, is the main cause of the difference. However, the results clearly show that the choice of β-value does not affect differences between 68Ga and 18F since the differences are consistent across β-values.
Supported by studies previously addressing BSREM image reconstruction for 18F-FDG and 68Ga-PSMA, it should be mentioned that a numerical equivalence in noise between the two different types of algorithms does not entail similar visual appearance nor detectability [6, 29]. The sample size was sufficient in order to demonstrate the differences between the two assessed reconstruction techniques and varying reconstruction and acquisition parameters. Another limiting factor was the short range and low number of tested β-values. Including higher β-values in the analysis would probably have allowed for reaching a noise level similar to that of OSEM with 2 min/bp using BSREM with 1 min/bp for 68Ga-DOTATOC and 18F-fluoride. However, BSREM reconstruction allowed for shorter acquisition than OSEM to reach similar noise levels for all tracers.
A note regarding the β-values should also be made. Our study uses a pilot version of the Q.Clear software, with the only difference to the commercially released software being the definition of β-values. Therefore, without affecting the results of our study, the evaluated β-values (originally set to 200–800 in steps of 200) were rescaled into 133–533 in steps of 133 to match the commercial version and to ensure reproducibility (i.e. βpilot = 1.5 × βcommercial).
We chose to compare the BSREM results to OSEM with 3 iterations 16 subsets, a 5-mm Gaussian post-processing filter, and PSF modelling, without further optimizing the OSEM algorithm. A narrower filter and a larger number of iterations would have increased the signal and simultaneously increased the level of noise. A previous study on 18F-FDG showed that a similar SNR and SBR was reached at higher noise levels for OSEM than for BSREM irrespective of filter width and number of iterations . The OSEM algorithm is well established in the clinical routine and has previously been optimized and we therefore chose to apply the settings recommended by the manufacturer as our reference. Moreover, the BSREM algorithm incorporates PSF recovery, and consequently we chose to apply PSF also with OSEM to narrow down the number of variables, since the PSF models are the same in the two algorithms.
The use of BSREM reconstruction leads to an increased SUVmax and will potentially facilitate lesion detection but may also lead to false-positive results in the image reading, which needs to be assessed in comparative trials for the various PET tracers in clinical use. Also, for lesions that are assessed by applying uptake thresholds, such as in therapy monitoring of Hodgkin’s lymphoma by FDG PET whereby the lesion uptake is compared to that of the mediastinal blood pool and the normal liver tissue, the effect of BSREM on the result of the evaluation needs to be investigated. The same holds true for characterization of solitary lung nodules, which includes comparison of its FDG-uptake to that of the mediastinal blood pool.
BSREM reconstruction of whole-body PET/CT examinations resulted in a tracer-dependent increase in tumour SUVmax as well as improved SNR and SBR with respect to conventional OSEM reconstruction, at equal acquisition times. Similar SNR, SBR, and noise levels could be attained with BSREM at relatively shorter acquisition times for matched administered dosages compared to OSEM. Alternatively, similar SNR, SBR, and noise levels could be attained with BSREM at lower administered dosages for matched acquisition times compared to OSEM. The findings of the present study thereby suggested a potential clinical benefit of BSREM over OSEM when applied for 68Ga-DOTATOC, 11C-acetate, and 18F-fluoride imaging.
Availability of data and materials
The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
Block-sequential regularized expectation maximization
Field of view
National Electrical Manufacturers Association
Ordered subsets expectation maximization
Positron emission tomography
Point spread function
Standardized uptake value
Nuyts J, Bequé D, Dupont P, Mortelmans L. A concave prior penalizing relative differences for maximum-a-posteriori reconstruction in emission tomography. IEEE Trans Nucl Sci. 2002;49:56–60.
Nuyts J, Fessler JA. A penalized-likelihood image reconstruction method for emission tomography, compared to postsmoothed maximum-likelihood with matched spatial resolution. IEEE Trans Med Imaging. 2003;22:1042–52.
De Pierro AR, Yamagishi MEB. Fast EM-like methods for maximum ‘a posteriori’ estimates in emission tomography. IEEE Trans Med Imaging. 2001;20:280–8.
Ross S. Q.Clear white paper. Chicago, IL; GE Healthcare; 2013. Accessed Oct. 19, 2017.
Ahn S, Fessler JA. Globally convergent image reconstruction for emission tomography using relaxed ordered subsets algorithm. IEEE Trans Med Imaging. 2003;22:613–26.
Lindström E, Sundin A, Trampal C, Lindsjö L, Ilan E, Danfors T, et. al. Evaluation of penalized-likelihood estimation reconstruction on a digital time-of-flight PET/CT scanner for 18F-FDG whole-body examinations. J Nucl Med. 2018;59:1152-1158.
National Electrical Manufacturers Association. Performance measurement of positron emission tomographs. Rosslyn, VA: National Electrical Manufacturers Association; 2012. NEMA standards publication NU 2-2012.
Rowley LM, Bradley KM, Boardman P, Hallam A, McGowan DR. Optimization of image reconstruction for 90Y selective internal radiotherapy on a lutetium yttrium orthosilicate PET/CT system using a bayesian penalized likelihood reconstruction algorithm. J Nucl Med. 2017;58:658–64.
De Bernardi E, Magnani P, Gianolli L, Gilardi MC, Bettinardi V. Regularized ML reconstruction for time/dose reduction in 18F-fluoride PET/CT studies. Phys Med Biol. 2014;60:67–80.
Ahn S, Ross S, Asma E, Miao J, Jin X, Cheng L, et al. Quantitative comparison of OSEM and penalized likelihood image reconstruction using relative difference penalties for clinical PET. Phys Med Biol. 2015;60:5733–51.
Reynés-Llompart G, Gámes-Cenzano C, Vercher-Conejero JL, Sabaté-Llobera A, Calvo-Malvar N, Martí-Climent JM. Phantom, clinical and texture indices evaluation and optimization of a penalized-likelihood image reconstruction method (Q.Clear) on a BGO PET/CT scanner. Med Phys. 2018;45:3214–22.
Vallot D, Caselles O, Chaltiel L, Fernandez A, Gabiache E, Dierickx L, et al. A clinical evaluation of the impact of the Bayesian penalized likelihood reconstruction algorithm on PET FDG metrics. Nucl Med Commun. 2017;38:979–84.
Ilan E, Sandström M, Velikyan I, Sundin A, Eriksson B, Lubberink M. Parametric net influx rate images of 68Ga-DOTATOC and 68Ga-DOTATATE: Quantitative accuracy and improved image contrast. J Nucl Med. 2017;58:744–9.
Van Essen M, Sundin A, Krenning EP, Kwekkeboom DJ. Neuroendocrine tumours: The role of imaging for diagnosis and therapy. Nat Rev Endocrinol. 2014;10:102–14.
Sundin A, Arnold R, Baudin E, Cwikla JB, Eriksson B, Fanti S, et al. ENETS consensus guidelines for the standards of care in neuroendocrine tumours: radiological, nuclear medicine & hybrid imaging. Neuroendocrinology. 2017;105:212–44.
Swinnen JV, Roskams T, Joniau S, Van Poppel H, Oyen R, Baert L, et al. Overexpression of fatty acid synthase is an early and common event in the development of prostate cancer. Int J Cancer. 2002;98:19–22.
Mapelli P, Incerti E, Ceci F, Castellucci P, Fanti S, Picchio M. 11C- or 18F-choline PET/CT for imaging evaluation of biochemical recurrence of prostate cancer. J Nucl Med. 2016;57(Suppl 3):43–8.
Schumacher MC, Radecka E, Hellström M, Jacobsson H, Sundin A. [11C] acetate positron emission tomography computed tomography imaging of prostate cancer lymph-node metastases correlated with histopathological findings after extended lymphadenectomy. Scand J Urol. 2015;49:35-42.
Sandblom G, Sörensen J, Lundin N, Häggman M, Malmström PU. Positron emission tomography with C11-acetate for tumour detection and localization in patients with prostate-specific antigen relapse after radical prostatectomy. Urology. 2006;67:996–1000.
Oyama N, Akino H, Kanamaru H, Suzuki Y, Muramoto S, Yonekura Y, et al. 11C-acetate PET imaging of prostate cancer. J Nucl Med. 2002;43:181–6.
Wassberg C, Lubberink M, Sörensen J, Johansson S. Repeatability of quantitative parameters of 18F-fluoride PET/CT and biochemical tumour and specific bone remodelling markers in prostate cancer bone metastases. EJNMMI Res. 2017;7:42.
Apolo AB, Lindenberg L, Shih JH, Mena E, Kim JW, Park JC, et al. Prospective study evaluating Na18F PET/CT in predicting clinical outcomes and survival in advanced prostate cancer. J Nucl Med. 2016;57:886–92.
Hsu DFC, Ilan E, Peterson WT, Uribe J, Lubberink M, Levin CS. Studies of a next generation silicon-photomultiplier-based time-of-flight PET/CT system. J Nucl Med. 2017;58:1511–8.
Teoh EJ, McGowan DR, Bradley KM, Belcher E, Black E, Moore A, et al. 18F-FDG PET/CT assessment of histopathologically confirmed mediastinal lymph nodes in non-small cell lung cancer using a penalised likelihood reconstruction. Eur Radiol. 2016;26:4098–106.
Teoh EJ, McGowan DR, Macpherson RE, Bradley KM, Gleeson FV. Phantom and clinical evaluation of the bayesian penalized likelihood reconstruction algorithm Q.Clear on an LYSO PET/CT system. J Nucl Med. 2015;56:1447–52.
Wangerin KA, Ahn S, Wollenweber S, Ross SG, Kinahan PE, Manjeshwar RM, et al. Evaluation of lesion detectability in positron emission tomography when using a convergent penalized likelihood image reconstruction method. J Med Imaging (Bellingham). 2017;4:011002.
Parvizi N, Franklin JM, McGowan DR, Teoh EJ, Bradley KM, Gleeson FV. Does a novel penalized likelihood reconstruction of 18F-FDG PET-CT improve signal-to-background in colorectal liver metastases? Eur J Radiol. 2015;84:1873–8.
Sah BR, Stolzmann P, Delso G, Wollenweber SD, Hüllner M, Hakami YA, et al. Clinical evaluation of a block sequential regularized expectation maximization reconstruction algorithm in 18F-FDG PET/CT studies. Nucl Med Commun. 2017;38:57–66.
Lindström E, Velikyan I, Regula N, Alhuseinalkhudhur A, Sundin A, Sörensen J, et al. Regularized reconstruction of digital time-of-flight 68Ga-PSMA-11 PET/CT for the detection of recurrent disease in prostate cancer patients. Theranostics. 2019;9:3476–84.
We thank the staff at Uppsala PET Centre performing the image examinations and Ezgi Ilan, hospital physicist at Uppsala University Hospital, for performing the NEMA image quality phantom experiments. We also thank Dr. Steve Ross, Dr. Charles Sterns, and Tarik Cengiz from GE Healthcare for their assistance and valuable insights.
This study was partly financed by a research grant from GE Healthcare and the Swedish government under the ALF agreement. Open access funding provided by Uppsala University.
Ethics approval and consent to participate
The study was approved by the Ethical Review Authority in Uppsala (Dnr, 2019-00092). Consent to participate was waived.
Consent for publication
Collaborative research between Uppsala University Hospital and GE Healthcare partly financed this study (P.I. ML), covering the salary of EL. No other potential conflicts of interest relevant to this article exist.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Additional file 1: Supplemental Figure S1. Correlation between 68Ga-DOTATOC and 18F-FDG of noise in normal liver tissue (A), signal-to-noise ratio (B) and signal-to-background ratio (C) using BSREM reconstruction with β-values of 133, 267, 400 and 533. The data were normalized to those obtained by TOF OSEM (3 iterations, 16 subsets and 5-mm gaussian post-processing filter). Supplemental Figure S2. Correlation between 18F-fluoride and 18F-FDG of noise in normal liver tissue (A), signal-to-noise ratio (B) and signal-to-background ratio (C) using BSREM reconstruction with β-values of 133, 267, 400 and 533. The data were normalized to those obtained by TOF OSEM (3 iterations, 16 subsets and 5-mm gaussian post-processing filter). Supplemental Figure S3. Correlation between 11C-acetate and 18F-FDG of noise in normal liver tissue (A), signal-to-noise ratio (B) and signal-to-background ratio (C) using BSREM reconstruction with β-values of 133, 267, 400 and 533. The data were normalized to those obtained by TOF OSEM (3 iterations, 16 subsets and 5-mm gaussian post-processing filter).
