SLIC-Occ: functional segmentation of occupancy images improves precision of EC50 images

Abstract

Background

Drug occupancy studies with positron emission tomography imaging are used routinely in early phase drug development trials. Recently, our group introduced the Lassen Plot Filter, an extended version of the standard Lassen plot to estimate voxel-level occupancy images. Occupancy images can be used to create an EC50 image by applying an Emax model at each voxel. Our goal was to apply functional clustering of occupancy images via a clustering algorithm and produce a more precise EC50 image while maintaining accuracy.

Method

A digital brain phantom was used to create 10 occupancy images (corresponding to 10 different plasma concentrations of drug) that correspond to a ground truth EC50 image containing two bilateral local “hot spots” of high EC50 (region-1: 25; region-2: 50; background: 6–10 ng/mL). Maximum occupancy was specified as 0.85. An established noise model was applied to the simulated occupancy images and the images were smoothed. Simple Linear Iterative Clustering, an existing k-means clustering algorithm, was modified to segment a series of occupancy images into K clusters (which we call “SLIC-Occ”). EC50 images were estimated by nonlinear estimation at each cluster (post SLIC-Occ) and voxel (no clustering). Coefficient of variation images were estimated at each cluster and voxel, respectively. The same process was also applied to human occupancy data produced for a previously published study.

Results

Variability in EC50 estimates was reduced by more than 80% in the phantom data after application of SLIC-Occ to occupancy images with only minimal loss of accuracy. A similar, but more modest improvement was achieved in variability when SLIC-Occ was applied to human occupancy images.

Conclusions

Our results suggest that functional segmentation of occupancy images via SLIC-Occ could produce more precise EC50 images and improve our ability to identify local “hot spots” of high effective affinity of a drug for its target(s).

Introduction

Positron Emission Tomography (PET) is routinely being used to estimate the required dose for a specific drug through PET occupancy studies [1,2,3,4,5,6,7,8,9]. Typically, regional occupancy values are used to produce one whole brain estimate of drug affinity (EC50) value for a cohort of subjects by fitting the occupancy to an Emax model [10, 11]. Drug doses are selected to reach a minimum therapeutic level without causing any adverse effects [12]. However, this method cannot detect spatial variation in drug affinity in the brain.

Recently, our group introduced the Lassen Plot Filter (LPF), an extended version of the standard Lassen plot to estimate drug occupancy of the voxel-level [13]. Using baseline and post-drug images of volume of distribution (VT), one can generate an occupancy image for a given drug dose. Multiple drug doses and scan times generate drug occupancy images at different plasma concentrations. Our group produced the first EC50 image using voxel-level occupancy images generated by LPF that confirmed the suspected spatial variation in effective affinity of CVL-865 for GABAA receptors in the brain [14, 15]. To maximize our confidence in the observed spatial variation of EC50 images, we sought to minimize the variability in the EC50 images.

The main goal of this study was to increase the precision of the EC50 images while maintaining accuracy. We modified a k-means clustering algorithm, Simple Linear Iterative Clustering (SLIC), to segment 4-dimensional occupancy images into clusters of similar occupancy. Cluster-level occupancy values were then fitted to an Emax model as per normal and a cluster-level EC50 image was generated. We refer to our modified SLIC as SLIC-Occ. To compare the precision of the SLIC-Occ output, we simulated 10 noisy occupancy images corresponding to 10 different plasma concentrations using known EC50 values. Estimated EC50 images, and coefficient of variation (CV (EC50)) images were calculated to assess the value of SLIC-Occ clustering on the accuracy and precision of EC50 images.

Material and methods

Simulated occupancy images

A digital human brain phantom (image size = 121 × 145 × 121, 1 mm isometric voxels) was used to create occupancy images with regional variation in occupancy, corresponding to different plasma concentrations. The brain phantom data was released under the Creative Commons Attribution-NonCommercial license (CC BY-NC) with no end date. Original MRI scans are from OASIS (https://www.oasis-brains.org/). Labelings were provided by Neuromorphometrics, Inc. (http://Neuromorphometrics.com/) under academic subscription. Concentration–response curves were generated according to an Emax model to generate 10 ideal occupancy images for the 10 different plasma concentrations of drug.

$$\text{Occ}={\text{Occ}}_{\text{max}}* \frac{C}{C+ {\text{EC}}_{50}}$$
(1)

In Eq. 1, Occ is the occupancy in every voxel of the occupancy image; EC50 is the predefined EC50 value at every voxel of EC50 image; Occmax is the maximum occupancy at every voxel; and C is the plasma concentration. The 10 different values of C were selected between 3 – 279 ng/mL based on an existing human data set, and Occmax was set to 0.85 [16].

To generate regional variation in occupancy image, the ground truth EC50 image (shown in Fig. 1) was created with an EC50 = 25 ng/mL in caudate and EC50 = 50 ng/mL in putamen. The rest of the brain was assigned an EC50 value between 6 and 10 ng/mL consistent with a whole brain average value from human data shown in a previous study [16].

Fig. 1
figure 1

Ground truth EC50 image showing “hot spots” of EC50 in putamen and caudate regions in coronal, axial, and sagittal views

We have shown previously that noise in occupancy images is a function of occupancy as follows [14].

$${\sigma }_{\text{Occ}}=-0.22*\text{Occ}+0.25$$
(2)

In Eq. 2, \({\sigma }_{\text{Occ}}\) is the standard deviation in occupancy, and Occ is the occupancy [14]. This noise was applied based on a normal random distribution at every voxel to all idealized occupancy images to the generate noisy occupancy images.

To add correlation between the voxels to our noisy occupancy images, we applied a Gaussian filter with a kernel size of 3 × 3 × 3. Multiple phantoms with different amounts of voxel correlation were generated using different Gaussian standard deviations (\({\sigma }_{\text{Gauss}}\)) for the Gaussian filter. The occupancy images (shown in Fig. 2) generated with \({\sigma }_{\text{Gauss}}\) = 0.5 voxels best represented the smoothness observed in occupancy images produced from real human data [14].

Fig. 2
figure 2

Simulated noisy smoothed occupancy images at different plasma concentrations. The occupancy noise model (Eq. 2) was applied to ideal EC50 images (Fig. 1) and smoothed by a Gaussian filter. White text for each image shows the plasma concentration used to generate the occupancy image from the true EC50 phantom

Clustering

SLIC algorithm was used to combine multiple voxels of the occupancy images into super-voxels (clusters) [17]. SLIC is an adaptation of k-means for super-pixel generation. It uses a smaller search area in its distance calculation which is faster than other k-means algorithms. It also uses a weighted average of spatial and feature-space distances which can be used to emphasize one of the distances over the other.

Mathematical implementation

The SLIC algorithm was first introduced by Achanta et al. [17] for its faster speed, greater memory efficiency and better adherence to boundaries compared to other k-means clustering algorithms. Later, a modified version of SLIC, ‘SLICR’, was introduced to incorporate temporal features from 2D dynamic computed tomography myocardial perfusion imaging [18]. In SLIC-Occ, we modified SLIC by introducing a distance in feature-space, feature-space refers to occupancy and spatial distances are calculated in 3D. The total distance measure to be minimized was calculated as:

$$D= \sqrt{{d}_{\text{feature}}^{2}+{\left(\frac{{d}_{\text{spatial}}}{S}\right)}^{2}* {m}^{2}}$$
(3)

In the Eq. 3, m controls the weighting of spatial distance over the feature distance.

$${d}_{\text{spatial}}= \sqrt{{\left({x}_{c}- {x}_{i}\right)}^{2}+ {\left({y}_{c}- {y}_{i}\right)}^{2}+ {\left({z}_{c}- {z}_{i}\right)}^{2}}$$
(4)

where (xc, yc, zc) is the coordinate of the center of the cluster c and (xi, yi, zi) is the coordinate of the voxel i which is to be assigned to a cluster. Feature-space is made up of \(V\) occupancy images corresponding to different plasma concentrations. Distance in feature-space is:

$${d}_{\text{feature}}=\sqrt{{\sum }_{v =1}^{V}{\left({f}_{c}^{v}-{f}_{i}^{v}\right)}^{2}}$$
(5)

where, \({f}_{c}^{v}\) is the occupancy value at the center of cluster c corresponding to plasma concentration value v and, \({f}_{i}^{v}\) is the occupancy value of the voxel i corresponding to plasma concentration value v. The search area for every voxel was defined as 2S x 2S x 2S, where S is defined as:

$$S= \sqrt[3]{N/K}$$
(6)

In Eq. 6, N is the total number voxels in each 3D occupancy image and the image is divided into K clusters.

Hyper-parameter selection

There are two parameters (i.e., m and K) that need to be optimized for SLIC-Occ clustering algorithm. The number of initial clusters, K, will determine the approximate size of a cluster, N/K, in terms of voxels. While the shape of each cluster will be determined by the value of m; the larger the m the more regular the clusters.

We created multiple simulations with different combinations of m and K to investigate their effects on accuracy and precision of EC50 images in our clustering algorithm. The choice of m and K was made to reduce the CV(EC50) while maintaining accuracy of EC50.

EC50 estimation

SLIC-Occ was used to segment 10 occupancy images, corresponding to 10 different plasma drug concentrations, into super-voxels (K clusters). Average occupancy of all the voxels within each cluster was used as the occupancy value for the corresponding cluster. Two versions of the Emax model (Eq. 1), were used to fit the occupancy data. In version 1, Occmax was fixed (1-parameter model); in the 2-parameter version Occmax and EC50 were estimated simultaneously.

The corrected Akaike information criterion (AICc) was calculated for both (1-parameter and 2-parameter) Emax model fits at every concentration–response curve (i.e., every cluster) as [14, 19]:

$$\text{AICc}=2p+n*\text{ln}\left(\frac{\text{SSE}}{n}\right)+ \frac{2{p}^{2}+2p}{n-p-1}$$
(7)

where p is the number of estimated parameters in the model, n is the number of data points being fitted, and SSE is the sum of squared errors. The model with lower AICc was selected as the best model.

Parametric images were constructed with the parameter estimate of the best model for each cluster. In other words, the final parametric images generated are a combination of 1- and 2-parameter fits depending on which model was selected based on AICc for each cluster. Using the cluster-level best-fit, EC50 and CV(EC50) images were generated. The coefficient of variation for an estimated parameter was defined as:

$$\text{CV}=\frac{{\sigma }_{\text{fit}}}{\mu }$$
(8)

where \(\mu\) is the parameter estimate, and \({\sigma }_{fit}\) is the standard deviation of the parameter estimate calculated by:

$${{\sigma }_{\text{fit}}}^{2}=\text{diag}\left({\left({J}^{\prime}*J\right)}^{-1}*\left(\frac{{R}^{\prime}*R}{n-p}\right)\right)$$
(9)

where J is the Jacobian matrix of Emax fit at the solution, R is the vector of residuals, n is the number of fitted data points, and p is the number of estimated parameters.

The distinct image regions in the ideal EC50 image were used to select the same voxels in the estimated EC50 image for bias calculation. Accuracy was calculated as percent bias as:

$$\text{Accuracy}= \frac{\text{Estimated\,EC}_{50 }- \text{Ground\,truth } {\text{EC}}_{50 }}{\text{Ground\,truth } {\text{EC}}_{50 }}*100$$
(10)

Voxel-level fitting of occupancy data

The two versions of the Emax model (1-parameter and 2-parameter), were used to fit the noisy occupancy data at every voxel. As with cluster-level estimates, voxel-level parametric images were constructed with the parameter estimate of the best model at each voxel, using the AICc to determine the best model fit. EC50, and CV(EC50) images for voxel-level estimation were generated to compare with the results from cluster-level images.

Human occupancy

SLIC-Occ algorithm was applied to human occupancy data (image size = 121 × 145 × 121, 1 mm isometric voxels) that were published in previous studies [14, 16]. A detailed description of the PET acquisition has been published [16]. In short, 5 healthy subjects underwent 3 scans each at the Yale PET center for 2 h on a ECAT EXACT HR + scanner (Siemens Medical Systems, Knoxville, TN, USA) after injection with 570 ± 141 MBq (injected mass: 2.7 ± 1.3 µg) of 11C-flumazenil, a nonselective GABAA tracer. One of the scans was performed at the baseline (no drug administration), and two were acquired after oral administration of a single acute dose of the \(\alpha 1\)-, \(\alpha 2\)-, \(\alpha 3\)-selective GABA positive allosteric modulator, CVL-865 (also known as PF-06372865). The drug dose was either 10 mg (n = 3) or 65 mg (n = 2). The post-drug scans were acquired at approximately 1.5 h and 24 h after administration of the drug. The plasma concentration of CVL-865 was measured at three different time points during the scan and averaged [16]. The occupancy versus drug concentration curves were generated for each voxel in the previous study [13, 14]. Using SLIC-Occ, the occupancy images were segmented into clusters. EC50, and CV(EC50) images were generated and compared with voxel-level EC50 and CV(EC50) images.

Results

Hyper-parameter selection

We fine-tuned the two hyper-parameters in SLIC-Occ (1. the number clusters: K, and 2. the shape parameter: m) by analyzing the precision and accuracy of clustering results with different hyper-parameter combinations. Figure 3a shows the CV(EC50) of the caudate region for multiple m values between 0.1 and 2.5 in increments of 0.1, combined with multiple K values ranging between 1000 (103) to 8000 (203) clusters. The CV(EC50) decreases as m is increased from 0.1 – 0.7 and then plateaus at m > 0.8. The effect of choice of K parameter on CV(EC50) was minimal.

Fig. 3
figure 3

a Precision and b accuracy (Eq. 10) of EC50 for caudate region with true EC50 = 25 ng/mL using different m and K combinations. K is the number of initial clusters, and m is weighting coefficient spatial distance over the temporal distance. Vertical dash line represents the selected value of m for the reported case. Note: m and K were selected for analysis of both phantom and human data based on similar calculations for multiple regions on the phantom data

Figure 3b shows the accuracy of clustering results for the same m and K combinations and same region (i.e., caudate region with ground truth EC50 = 25 ng/mL) as in Fig. 3a. Almost all the simulations with any m and K combinations showed a negative bias except for the simulation with K = 1000. The bias increased as m increased from 0.1 to 1.3 for all K values and at m > 1.4 the bias started to plateau in a range 40 – 60% depending on K. Based on Fig. 3, we chose an m = 0.5 and K = 8000 to cluster occupancy images for both digital phantom and human dataset.

Phantom data

We compared the accuracy, precision, and computational efficiency between voxel-level and the SLIC-Occ parameter estimation using the digital phantom. EC50 was underestimated by the cluster-level and was over-estimated by the voxel-level mainly in the hot spot regions (Figs. 4 and 5). However, the precision of EC50 was improved using clustering compared to voxel-level (Fig. 6). The 2-parameter model was preferred everywhere when using clustering in occupancy-space, while the 1-parameter model was preferred for a region with high EC50 values when using voxel level processing, alone (Additional file 1: Fig. S1). Similarly, the cluster-level analysis, produced Occmax estimates closer to the true Occmax (True Occmax = 0.85) everywhere in the brain than did voxel-level processing. Voxel-level processing tended to overestimate Occmax (Occmax = 1) in the region with the highest EC50 (Additional file 1: Fig. S2).

Fig. 4
figure 4

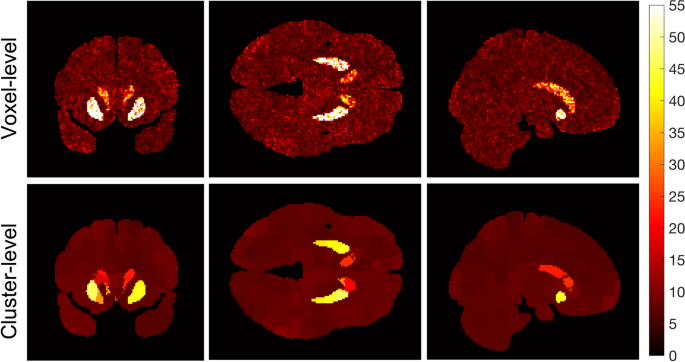

EC50 images (ng/mL) for both voxel-level (top row) and cluster-level (bottom row) best-fit (a combination of 1- and 2-parameter models based on AICc selection) shown in coronal, axial and sagittal views

Fig. 5
figure 5

The bias (estimated EC50 – true EC50) for the voxel-level (top row) and the cluster-level (bottom row) in ng/mL shown in coronal, axial and sagittal views. The voxel-level generally overestimates, while cluster-level underestimates the EC50 values in the hot spots

Fig. 6
figure 6

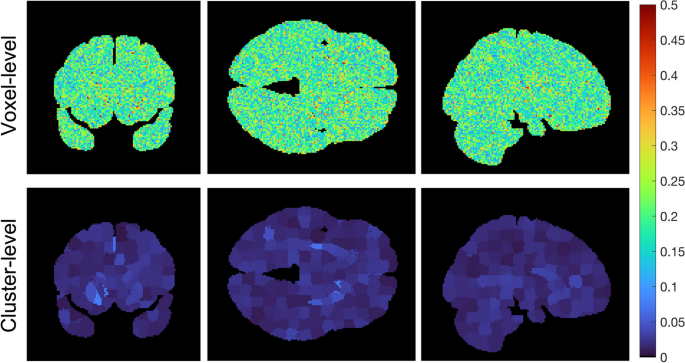

The variability, CV(EC50), in voxel-level (top row) is reduced by clustering (bottom-row)

The average EC50 and CV(EC50) for the putamen, caudate and the whole brain are provided for the ground truth, voxel-level fitting, and cluster-level fitting in Table 1. The CV(EC50) in voxel-level was decreased > 5 times by clustering. Clustering decreased the CV(EC50) by > 7x, > 5x, and > 10 × in putamen, caudate and whole brain, respectively. Cluster-level computation time was decreased to ~ 6 min compared to 120 min for voxel-by-voxel in voxel-level (Table 1).

Table 1 EC50 (measured in ng/mL) and CV(EC50) are reported as mean ± standard deviation of all the voxels within the region for both phantom and human occupancy data

Human data

Figure 7 shows EC50 images for human occupancy data for voxel-level fitting and cluster-level fitting using m = 0.5, and K = 8000. Regional hot spots can be observed in both methods, but cluster-level fitting produces lower values in the hot spots. This trend is similar to the phantom data, where cluster-level estimated lower EC50 compared voxel-level. A lower CV(EC50) (i.e., improved precision) is observed for the cluster-level compared to voxel-level (Fig. 8). But the reduction in CV(EC50) is not as large as in the phantom data (Fig. 6 and Table 1). The choice of a 1- or 2-parameter model for both voxel-level and cluster-level was less consistent in the human data than in the phantom data (Additional file 1: Fig. S3). However, 2-parameter model was generally preferred over 1-parameter model in the cluster-level compared to voxel-level. Furthermore, the Occmax image followed a similar trend to the AICc image (Additional file 1: Fig. S4).

Fig. 7
figure 7

EC50 images (ng/mL) for voxel-level (top row) and cluster-level (bottom row) best-fit (a combination of 1- and 2-parameter models based on AICc selection) based on the human occupancy data

Fig. 8
figure 8

CV(EC50) images for voxel-level (top row) and cluster-level (bottom row) based on human occupancy data

Discussion

Study goal

In this study, we modified the SLIC clustering algorithm and introduced SLIC-Occ to perform functional segmentation of voxel-wise occupancy images into clusters and then to generate an EC50 image. Our goal was to create a super-voxel that has the same coordinates spatially, for all the occupancy images, so that we could assign the occupancy data for a cluster to a single binding curve. We expected that by doing so we would reduce the noise in each binding curve, and that would, in turn, reduce variance in the EC50 estimates and the computation time.

Results and their implication

Applying the proposed methodology (clustering using SLIC-Occ) to simulated occupancy images, we estimated the EC50 image in the “hot spots” with higher precision compared to the voxel-level method (no clustering), with only a minimal loss of accuracy (Figs. 4, 5 and 6). (Note to reader: The use of “hot spots” refers to high EC50, although it corresponds to low affinity in the brain). We observed a similar trend in the human occupancy data, although a smaller improvement in precision was found compared to simulated data (Figs. 7 and 8). The voxel-level method over-estimated the EC50 values in the hot spots and the whole brain (compared to ground truth), while the cluster-level method under-estimated the EC50 values in the same regions (Table 1). Computation time in the cluster-level method was reduced by orders of magnitude compared to voxel-level (Table 1). This is because there are far fewer binding curves after the occupancy data have been clustered.

Reducing variation in the EC50 image was the key goal of our study. Reducing the variance increases the precision of the measurements and increases the power of an occupancy study. This, in turn, can reduce the number of subjects needed to achieve a desired level of statistical power, and thus, can lead to cost savings. Reducing variation, even by a small factor, increases the signal-to-noise ratio of the data, making it easier to detect small differences between groups or treatments. In occupancy images, reduced variance might also aid in the detection of hot spots which differ slightly, but significantly, from the whole brain.

Reconciling findings in human data and simulations

The CV(EC50) in the simulation data was reduced by more than 5 times everywhere, while in the human occupancy data this reduction was less than 2 times. We believe this more modest improvement in the precision could be due to the nature of the variance in human occupancy data that we did not completely replicate in simulation. However, precision for both our simulation and human data were improved using clustering. Further investigation with better models of within-subject and across-subject variations in human occupancy data may shed light on our findings.

SLIC-Occ implementation

Clustering is becoming popular in many image processing areas. SLIC, a k-means clustering algorithm, was first introduced by Achanta et al. [17] to generate super-pixels in 2D color image more efficiently. Other researchers have modified the algorithm to cluster medical images [18, 20,21,22]. In our study, we modified SLIC to SLIC-Occ to cluster 4D data (3D occupancy images at different drug concentration levels). The two parameters that must be supplied to the algorithm are m and K.

We investigated the effects of m and K on precision and accuracy of the final EC50 results by running multiple simulations (Fig. 3, Additional file 1: Fig. S5 and S6). In their study, Wu et al. [18] reported lower average standard deviation in flow (at the voxel-level) with decreasing m values. We observed similar results in our simulations: increasing m led to increased precision of EC50 estimates until it plateaued. Increasing m also led to decreased accuracy of EC50 estimates. The hyper-parameter, m (referred to as a “shape factor” by the Wu et al. [18]), produces more regular hexagonal clusters as it is increased. The effect of increasing K was opposite to that of increasing m.

In our simulation data, the average CV(EC50) using voxel-level fitting was 0.23 for the caudate region (Table 1), which is almost three times as large as the worst CV(EC50) predicted by any m and K combination (Fig. 3a). Selecting an initial large number of clusters (i.e., large K) resulted in a smaller bias for the same m. Selection of K > 4913 (173), and m \(\epsilon\) [0.3 – 0.5] resulted in a bias between 15 – 20% (Fig. 3b). These combinations of m and K produced CV(EC50) < 0.04, which is smaller than one fifth of the CV(EC50) from the voxel-level best-fitting.

In choosing m and K, one must consider the regularity of the regions that are expected to follow similar behavior as well as the size of those regions. In other words, how small and how ‘regular’ a super-voxel (i.e., a cluster) is needed to capture a region of homogenous behavior, should dictate the choice of m and K. The larger the K, the smaller the super-voxel size and the larger the m, the more regular the cluster shapes.

We also checked the reproducibility and directionality of the clustering algorithm by running the same phantom multiple times using different orientations and calculated the EC50 at the end of each run. There were no differences between runs suggesting that our algorithm would identify the same clusters every time regardless of object orientation, provided the same m and K values are entered as inputs. We believe our implementation is not prone to operator bias.

Limitations

First, the results following clustering depend on selection of the hyper-parameters. In our study, we selected the m and K values based on multiple simulations and selecting the combination that estimated the lowest precision and the minimum bias. Unfortunately, in real human data the truth is unknown, so the selection of m and K might require a general understanding of the data, i.e., size, shape and regularity of the clusters. These parameters could also potentially be optimized by further simulation studies.

Second, our simulations may not have perfectly modeled the variability in the human occupancy data throughout the brain. We added noise to our simulated occupancy images at the voxel based on a previously published noise model (Eq. 2). However, the published noise model in Eq. 2 was derived from occupancy in only select regions of the brain and the range of occupancies in these regions may not have spanned the range of occupancies in the whole brain. The simulation data also assumed that all the images were belonged to one ideal binding curve. In effect, we didn’t model inter-subject variability.

Third, the voxel-wise human occupancy data have two main sources of correlation among voxels; (1) the correlation that is generated during the PET scan due to spatial resolution of the scanner, the sensitivity of the detector, and the noise characteristics of the detector, and (2) the correlation that is produced by applying the LPF to VT images. Although, we introduced correlation among voxels in our simulation data by smoothing noisy occupancy images using a Gaussian filter, we believe this filter may not perfectly represent the correlation that is found in the human data. Future studies could potentially address each of the correlation sources separately.

Conclusion

We introduced a modified version of the SLIC algorithm (“SLIC-Occ”) to segment occupancy images into clusters. Using SLIC-Occ we were able to reduce the CV in the EC50 images while introducing minimal bias. Our results suggest that functional segmentation of occupancy images could produce more precise EC50 images, improve our ability to identify “hot spots” in EC50, and improve power in drug occupancy studies.

Availability of data and materials

Data in this study will be available upon reasonable request.

Abbreviations

PET:

Positron emission tomography

EC50 :

Drug affinity

LPF:

Lassen Plot Filter

VT :

Volume of distribution

SLIC:

Simple Linear Iterative Clustering

CV:

Coefficient of variation

AICc :

Corrected Akaike information criterion

References

  1. Stenkrona P, Halldin C, Lundberg J. 5-HTT and 5-HT(1A) receptor occupancy of the novel substance vortioxetine (Lu AA21004). A PET study in control subjects. Eur Neuropsychopharmacol. 2013;23(10):1190–8.

    Article  CAS  PubMed  Google Scholar

  2. Hirvonen J, et al. Assessment of MAO-B occupancy in the brain with PET and [11C]-L-deprenyl-D2: a dose-finding study with a novel MAO-B inhibitor, EVT 301. Clin Pharmacol Ther. 2009;85(5):506–12.

    Article  CAS  PubMed  Google Scholar

  3. Jucaite A, et al. AZD5213: a novel histamine H3 receptor antagonist permitting high daytime and low nocturnal H3 receptor occupancy, a PET study in human subjects. Int J Neuropsychopharmacol. 2013;16(6):1231–9.

    Article  CAS  PubMed  Google Scholar

  4. Rusjan P, et al. Exploring occupancy of the histamine H(3) receptor by pitolisant in humans using PET. Br J Pharmacol. 2020;177(15):3464–72.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  5. Gunn RN, Rabiner EA. Imaging in central nervous system drug discovery. Semin Nucl Med. 2017;47(1):89–98.

    Article  PubMed  Google Scholar

  6. Lim KS, et al. Modeling of brain D2 receptor occupancy-plasma concentration relationships with a novel antipsychotic, YKP1358, using serial PET scans in healthy volunteers. Clin Pharmacol Ther. 2007;81(2):252–8.

    Article  CAS  PubMed  Google Scholar

  7. Di Ciano P, Mansouri E, Tong J, Wilson AA, Houle S, Boileau I, Duvauchelle T, Robert P, Schwartz JC, Le Foll B. Occupancy of dopamine D2 and D3 receptors by a novel D3 partial agonist BP1.4979: a [11C]-(+)-PHNO PET study in humans. Neuropsychopharmacology. 2019;44(7):1284–90.

    Article  PubMed  Google Scholar

  8. Takano A, Halldin C, Farde L. SERT and NET occupancy by venlafaxine and milnacipran in nonhuman primates: a PET study. Psychopharmacology. 2013;226(1):147–53.

    Article  CAS  PubMed  Google Scholar

  9. Ashworth S, et al. Unexpectedly high affinity of a novel histamine H(3) receptor antagonist, GSK239512, in vivo in human brain, determined using PET. Br J Pharmacol. 2014;171(5):1241–9.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  10. Lassen NA, et al. Benzodiazepine receptor quantification in vivo in humans using [11C]flumazenil and PET: application of the steady-state principle. J Cereb Blood Flow Metab. 1995;15(1):152–65.

    Article  CAS  PubMed  Google Scholar

  11. Salahudeen MS, Nishtala PS. An overview of pharmacodynamic modelling, ligand-binding approach and its application in clinical practice. Saudi Pharm J. 2017;25(2):165–75.

    Article  PubMed  Google Scholar

  12. Takano A, et al. Guidelines to PET measurements of the target occupancy in the brain for drug development. Eur J Nucl Med Mol Imaging. 2016;43(12):2255–62.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  13. de Laat B, Morris ED. A local-neighborhood Lassen plot filter for creating occupancy and non-displaceable binding images. J Cereb Blood Flow Metab. 2021;41(6):1379–89.

    Article  PubMed  Google Scholar

  14. de Laat B, et al. EC50 images, a novel endpoint from PET target occupancy studies, reveal spatial variation in apparent drug affinity. Eur J Nucl Med Mol Imaging. 2022;49(4):1232–41.

    Article  PubMed  Google Scholar

  15. Myers JF, Comley RA, Gunn RN. Quantification of [(11)C]Ro15-4513 GABA(A)α5 specific binding and regional selectivity in humans. J Cereb Blood Flow Metab. 2017;37(6):2137–48.

    Article  CAS  PubMed  Google Scholar

  16. Nickolls SA, et al. Pharmacology in translation: the preclinical and early clinical profile of the novel alpha2/3 functionally selective GABA(A) receptor positive allosteric modulator PF-06372865. Br J Pharmacol. 2018;175(4):708–25.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  17. Achanta R, et al. SLIC superpixels compared to state-of-the-art superpixel methods. IEEE Trans Pattern Anal Mach Intell. 2012;34(11):2274–82.

    Article  PubMed  Google Scholar

  18. Wu H, et al. SLICR super-voxel algorithm for fast, robust quantification of myocardial blood flow by dynamic computed tomography myocardial perfusion imaging. J Med Imaging. 2019;6(4):046001.

    Article  Google Scholar

  19. Hurvich CM, Tsai CL. Regression and time series model selection in small samples. Biometrika. 1989;76(2):297–307.

    Article  Google Scholar

  20. Wang Y, Qi Q, Shen X. Image segmentation of brain MRI based on LTriDP and superpixels of improved SLIC. Brain Sci. 2020;10(2):116.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  21. Gil Gonzalez, J., M.A. Alvarez, and A.A. Orozco, A probabilistic framework based on SLIC-superpixel and Gaussian processes for segmenting nerves in ultrasound images. Annu Int Conf IEEE Eng Med Biol Soc, 2016; 2016: 4133–4136.

  22. Wu H, et al. SLIC robust (SLICR) processing for fast, robust CT myocardial blood flow quantification. Proc SPIE Int Soc Opt Eng. 2018;10578:440.

    Google Scholar
