Optimizing reconstruction parameters for quantitative 124I-PET in the presence of therapeutic doses of 131I

Abstract

Background

The goal of this work was to determine the quantitative accuracy and optimal reconstruction parameters for 124I-PET imaging in the presence of therapeutic levels of 131I. In this effort, images were acquired on a GE D710 PET/CT scanner using a NEMA IEC phantom with spheres containing 124I and increasing amounts of 131I activity in the background. At each activity level, two scans were acquired, one with the phantom centered in the field of view (FOV) and one 11.2 cm off-center. Reconstructions used an ordered subset expectation maximization algorithm with up to 100 iterations of 16 subsets, with and without time-of-flight (TOF) information. Results were evaluated visually and by comparing the 124I activity relative to the scan performed in the absence of 131I.

Results

131I within the FOV added to the randoms rate, to dead time, and to pile-up within the detectors. Using our standard clinical reconstruction parameters, the image quality and quantitative accuracy suffered at 131I activities above 1.4 GBq. Convergence rates slowed progressively in the presence of increasing amounts of 131I for both TOF and nonTOF reconstructions. TOF reconstructions converged more quickly than nonTOF but often towards erroneous concentrations. Iterating nonTOF reconstructions to convergence produced quantitatively accurate images except for the off-center phantom at the very highest level of background 131I tested.

Conclusions

This study shows that quantitative PET is feasible in the presence of large amounts of 131I. The high randoms fractions resulted in slow reconstruction convergence and negatively impacted TOF corrections and/or the accuracy of TOF information. Therefore, increased iterations and nonTOF reconstructions are recommended.

Background

Targeted radionuclide therapies (TRT) provide a unique opportunity for the concomitant use of theranostic radionuclide pairs to allow more precise patient-specific dosimetry measurements and to better assess treatment follow-up. For pre-therapy dosimetry, a diagnostic level of radiotracer is injected into the patient, followed by serial blood sampling and imaging [1, 2]. This information is used to estimate the patient dose distribution for the planned therapy with the assumption that the dose will scale linearly with the radioactivity injected. To validate this assumption in the context of radionuclide therapy with 131I-Iodide, we considered comparing pre-therapy PET images made using (the more quantitatively accurate) 124I-Iodide against similar PET images acquired following co-injection of 124I-Iodide along with the 131I-Iodide therapeutic dose. For this comparison to be valid, however, we first needed to determine if the presence of large amounts of 131I within and around the PET FOV impacts 124I quantitation.

Radioactive iodine (RAI) therapy with 131I is widely used to treat thyroid cancer [3]. 131I is also used clinically for other therapies such as recurrent or refractory neuroblastoma [4] with Iodine-131-m-iodobenzylguanidine (131I-mIBG), a structural analogue of a neurotransmitter. Successful and safe use of TRT requires knowledge of the radionuclide distribution in the patient: accurate quantification of the radiolabel uptake in the lesion and possibly other organs of interest. Since lesion uptake and biodistribution varies greatly from patient to patient, patients must be individually imaged. Knowing the patient-specific uptake of the radionuclide targeting agent allows for the customization of the therapeutic plan so that it is consistent with the dose constraints of the dose-limiting tissues [5].

Different approaches for RAI dosimetry have been used. Pacini et al. injected a low dose of 131I for pre-therapeutic SPECT scan imaging [6]. However, compared to PET, SPECT suffers from relatively low resolution and low sensitivity and has more severe count rate limitations. 131I emits high-energy gammas that penetrate the septa which further degrade image resolution, incur artifacts, and generally present challenges to quantitative imaging. Lower resolution is particularly problematic for small structures for which dose estimates are less accurate. Small lesions can be missed entirely. 123I has been used as an alternative to 131I, producing higher quality images afforded by the lower 160-keV photon emission energy and at lower radiation dose per unit administered activity. However, the 13.2-h half-life of 123I limits the ability to perform late time point imaging, important for the estimation of the dosimetry for many radiopharmaceuticals.

To rectify these deficiencies, the positron-emitter 124I has been proposed for pre-therapy lesion dosimetry [7]. 124I has a 4.2-day half-life and allows for quantitatively accurate PET imaging, making it well suited for radioiodine dosimetry applications. Beijst et al. studied the difference in lesion detectability between 131I-SPECT and 124I-PET imaging and found that 124I-PET offers better image quality for similar activity concentrations [8, 9].

The clinical value of pre-therapeutic dosimetry is still being debated due to the uncertainty surrounding the assumption of linearity of uptake between the pre-therapeutic and therapeutic doses. It is possible that the radioiodine tracer dose given before therapy might change the tissue’s avidity for radioiodine or the radiolabeled carrier molecule. This effect could be pharmacologic or potentially radiologic with the latter often referred to as “stunning”. Quantitative 124I-PET before and during therapy could provide new information on the accuracy of pre-therapy dosimetry.

A few phantom studies investigating the ability to image 124I in the presence of 131I have been published. Lubberink et al. looked at optimizing acquisition parameters (energy window) for 2-D and 3-D 124I-PET imaging with 75 MBq of 131I in the background of an IEC phantom, based on images acquired on an ECAT EXACT HR + scanner (CTI/Siemens) [10]. They observed a loss in image quality compared to 124I-PET alone but did not report on 124I quantitative accuracy and these results cannot be extrapolated to newer scanners. Braad et al. [11] measured the accuracy of 124I-PET on a GE D690 PET/CT scanner, a scanner in the same class as the D710 PET scanner used here. Their study, however, focused on contrast recovery using a variety of sphere to background ratios in data sets reconstructed using a single set of reconstruction parameters, while in our study we focused on the impact that the presence of 131I had on the reconstruction convergence rate. Also, the maximum amount of 131I they considered was 1.25 GBq whereas we sought to determine the full range of background 131I levels over which quantitative accuracy would be maintained and used up to 3.7 GBq of 131I.

Methods

Iodine isotopes

131I decays by beta minus emission, with an 8.02-day half-life, making it well suited for radionuclide therapy applications. In 81% of decays, a 364-keV gamma is also emitted and in ~ 7% a 637-keV gamma is produced. Although there are no coincident emissions among these gammas, they fall within the energy window (425–650 keV) used by the PET camera to detect the 511-keV annihilation photons. Given large enough quantities of 131I within or near the PET FOV, these will add considerably to detector dead time and pile-up and can produce a significant number of random coincidence events, adding both noise and potential quantitative bias to the PET images.

124I decays 77% by electron capture and 23% by positron emission. The positron emission allows imaging of 124I distribution with PET; however, half of the positrons are emitted in a cascade that includes a 602.7-keV prompt gamma (i.e., a gamma produced within the timing window used to identify annihilation photon coincidence pairs). The energy of this gamma is within the PET energy window, so coincidences between the prompt gamma and an annihilation photon cannot be differentiated from those resulting from an annihilation photon pair, resulting in spurious “cascade coincidences” that contribute to an additional background signal which affects the quantification if left uncorrected [12, 13].

PET/CT camera

All scans were acquired on a lutetium-yttrium orthosilicate (LYSO) GE Discovery 710 PET/CT scanner (GE Medical Solutions, Waukesha, WI, USA). This camera has a 15.7 cm axial by 70.0 cm FOV, timing resolution of 560 ps, and a sensitivity of 7.5 cps/kBq when using an energy window of 425–650 keV and a 4.9-ns timing window. Dead time is determined based on a directly measured block busy signal. Scatter correction is based on a distribution calculated using a single scatter model, the amplitude of which is determined via tail-fit. Cascade coincidences are accounted for by including an additional constant parameter when performing the tail-fit of the modeled scatter correction. The use of a constant during this fit assumes that the cascade coincidence distribution is uniform throughout the projection space. All reconstructions were performed off-line using Release 2.0 of GE’s PET Reconstruction Toolbox made available to us through a research study agreement.

Phantom

PET scans were performed using a NEMA IEC body phantom (24.1 × 30.5 × 24.1 cm, 9.7 L) containing a lung insert and six fillable spheres of various diameters: 10, 13, 17, 22, 28, and 37 mm. All spheres were filled with 0.37 MBq/cc of 124I (a concentration typically seen in thyroid cancer lesions given the planned pre- and mid-therapy 124I injected doses). A baseline PET scan was acquired with a cold (i.e., no radioactivity) water-filled background. Subsequent PET images were acquired with increasing amounts of 131I in 740 MBq increments up to 3.7 GBq. For each scan, the phantom was placed back in the same position using the laser alignment lines and markers on the PET table. PET scans at each background activity level were acquired with the table at a height that centered the lung insert within the FOV and again with the table raised to its maximum height (11.2 cm higher), resulting in “off-center” images. These same two table heights were used for all background activity levels, resulting in two groups of scans (centered and off-center). The off-center phantom was included in this study because we anticipated that it would incur non-uniform randoms and cascade coincidence distributions and that this might prove especially challenging both to the PET camera hardware and image reconstruction process.

PET/CT acquisition and reconstruction

Scans were acquired in time-of-flight mode, for 8 min using a single bed position centered over the axial extent of the phantom. PET images were reconstructed using our standard clinical reconstruction protocol: a TOF 3D-ordered subset expectation maximization (OSEM) reconstruction algorithm with 2 iterations, 16 subsets, point-spread function modeling (GE SharpIR), a 128 × 128 × 47 matrix (voxel spacing of 5.47 × 5.47 × 3.27 mm), 1-2-1 axial smoothing, 6.4 mm Gaussian in-plane smoothing, and random coincidences estimated from singles. Additional image reconstructions using up to 100 iterations were performed with and without TOF information. The CT scan parameters were 120 kV, 70 mA, 700 mm FOV, 1.25 mm slice thickness, and 512 × 512 matrix size.

Data analysis in image space

Centered and off-center scans were registered to one another using rigid body transforms (HybridViewer v4.0.0, Hermes Medical Systems). Spherical volumes of interest (VOIs) of 5.5 cm in diameter, were drawn on the baseline scan centered over each sphere containing 124I. A seventh spherical VOI was placed in the background. All VOIs were copied and applied to the other image sets. VOIs around the spheres were drawn with large margins to capture all the radioactivity emanating from each sphere (see Supplemental Figure S1). Because there was no 124I in the background region, each sphere’s activity concentration can be determined by taking the total activity inside the VOI and dividing it by the sphere’s physical volume. For spheres containing air bubbles, the volume was adjusted after measuring the air bubble volume on the CT image. 124I activity concentration was decay-corrected to the time of the first scan’s acquisition.

To assess convergence rates, concentration measurements were made using a small VOI (3 × 3 × 3 voxel) placed in the approximate center of each sphere and applied to images reconstructed with between 1 and 100 iterations. Each of these curves was then normalized by its final value.

Data analysis in projection space

Region of interest (ROI) measurements were taken from the line-of-response (LOR) data in nonTOF projection space (i.e., projections in which the TOF bins have been summed together). In these measurements, only the LORs perpendicular to the scanner axis were included (i.e., the oblique angles were excluded). Each ROI included the 25 LORs (block of 5 × 5 pixels) passing through the approximate center of the largest sphere. The position of the ROI was adjusted so that it traced a sinusoidal path as a function of the LOR ray angle (see video in Supplemental data S2) and the mean over all angles was measured. In addition, an ROI of identical size and placement as a function of angle but offset in the axial dimension was used to sample only background activity (i.e., excluding activity from hot spheres). Measurements were taken from the raw prompts, random coincidences (estimated from singles), scattered coincidences (modeled), raw true coincidences (prompts minus random and scatter), and fully corrected true coincidence projection data sets (i.e., trues corrected for dead time, pile-up, and attenuation).

Results

Activity quantification when using clinical reconstruction parameters

The initial measurements of the 124I activity concentration were based on PET images reconstructed using our standard clinical reconstruction parameters, 2 iterations of the OSEM algorithm utilizing 16 subsets (2 × 16) in TOF-mode with point-spread modeling (SharpIR). Based on these images, the apparent activity in the spheres as a function of 131I background activity differed depending both on sphere size and the phantom’s position within the FOV (Fig. 1a, b). For the centered scans and for increasing background activity, apparent activity concentration tended to decrease slightly in the larger spheres, whereas it increased dramatically in the smaller spheres. The activity increase for the small spheres was attributable to the oversized VOIs we drew to capture all the activity emanating from each sphere assuming that the true background was zero. The results here suggest that the apparent background was above zero in these images. For the largest sphere, the seeming low activity is likely due to activity not captured within the VOI because of partial voluming (i.e., the VOI was not oversized enough, having only 0.4-cm excess border for the 3.7-cm-diameter sphere). For the off-center scans, the measured activity in the four largest spheres was stable up to 2.2 GBq of 131I, but dropped precipitously for higher activities. For the two smallest spheres, the measured activity was quite variable, at times either increasing or decreasing in the presence of additional background 131I. The small spheres were difficult to visualize at 131I activities above 2.2 GBq.

Fig. 1
figure 1

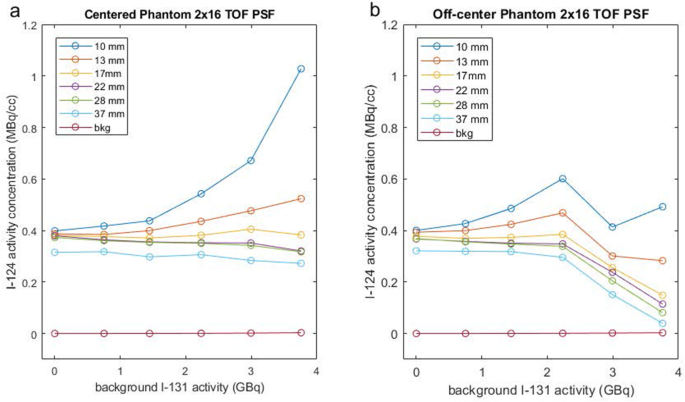

124I activity concentration in the phantom’s spheres as a function of increasing 131I activity in the background measured on the PET image reconstructed with the OSEM algorithm with 2 iterations and 16 subsets, TOF information and PSF modeling. The phantom was placed in the middle of the field of view (a) and on the scanner table at the anterior most position, 11.2 cm higher (off-center) (b)

Relative activity quantification taken in projection space

The source of the quantitative errors seen at high 131I background levels was determined by taking measurements from the raw projection data with and without various corrections and from the random and scatter coincidence corrections themselves. Examples of this data are shown in Fig. 2 which shows a single projection angle of the raw LOR “true” coincidences (Fig. 2a, b) and with all corrections applied (Fig. 2c, d). Although the spheres sometimes overlapped depending on the angle of the projection (and thus the measurements cannot be said to be always of a single sphere), equivalently made measurements still allow for comparisons among the scans with a differing background.

Fig. 2
figure 2

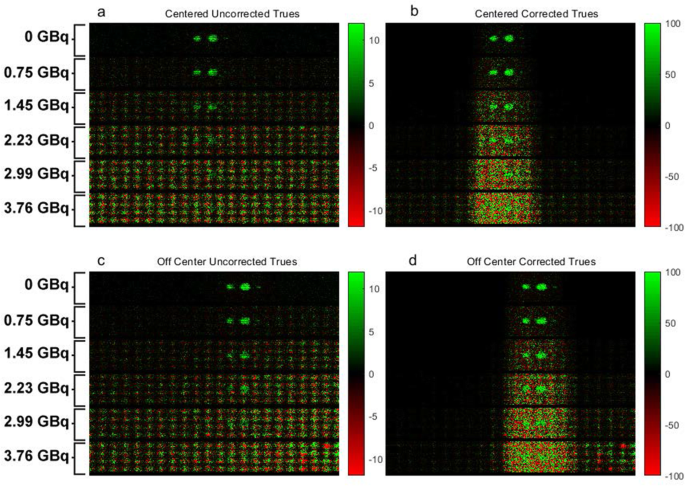

Projection images of the number of uncorrected true events (a, c) and corrected true events (b, d) for the centered (a, b) and off-centered phantom (c, d) acquisition and for increasing 131I activity in the background. The corrected number of trues corresponds to the number of trues recorded by the PET system multiplied by the dead-time correction factor, the normalization factor, and the attenuation correction factor

As can be appreciated from Fig. 3a and c (centered and off-center scans, respectively), the random coincidences measured from the LORs passing through the largest sphere increase approximately with the square of the 131I activity, overtaking the uncorrected true coincidences at 2.2 GBq and ultimately outnumbering them by several fold. Above 2.2 GBq of 131I, the true and scattered coincident events decrease consistently with the increasing dead time. Counts sampled from the LORs passing through the background region (Fig. 3b, d) show random and scattered coincidence levels similar to that in Fig. 3a and c. The true coincidences, however, are appropriately near zero regardless of the background 131I activity level suggesting that the randoms and scatter are accurately estimated in the nonTOF projection space.

Fig. 3
figure 3

Number of uncorrected true, scatter, and random events measured in a small VOI placed at the center of the 37-mm-diameter phantom sphere (a, c) and in the background (b, d) in projection space and for all angles as a function of increasing 131I activity in the background for acquisitions with the phantom centered (a, b) and off-centered (c, d)

Figure 4a (centered phantom) shows that the dead-time correction is functioning properly, yielding an essentially constant level of true counts from the LORs passing through the large sphere for all 131I activity levels (note: the attenuation correction has been applied but is not impacted by 131I activity). In the off-center phantom, the corrected trues have a slight decline with increasing 131I activity (Fig. 4b).

Fig. 4
figure 4

Corrected and uncorrected number of true events measured in projection space at the center of the 37-mm-diameter sphere of the IEC phantom and in the phantom background, for increasing 131I activity concentration and for acquisition performed with the phantom centered in the FOV (a) and the phantom off-centered (b)

Rate of convergence

After applying all corrections, there was a constant number of counts emanating from the 124I-filled spheres in projection space across all background levels. We therefore were left to explain why the post-image reconstruction results were not also constant (Fig. 1a, b) and so chose to investigate the convergence rate for the various spheres as impacted by the 131I background activity level. The plots in Fig. 5a–d show that increasing amounts of 131I background activity cause a marked reduction in the rate of convergence of the iterative image reconstruction algorithm overall. Reconstructions using TOF information converged more quickly than nonTOF reconstructions and for the off-center phantom convergence rates were slower, especially for the smallest and furthest off-center spheres (Supplemental Figures S3 and S4). For both the centered and off-center phantoms with background 131I activity levels up to 0.7 GBq, two iterations were enough to achieve concentrations close to the final value. With larger amounts of 131I in the background (and especially for the off-center phantom), stopping at two iterations incurred large errors. Overall, 25 iterations of the TOF reconstruction algorithm were necessary to reach convergence in all regions of the centered phantom and 75 iterations were required for nonTOF reconstruction.

Fig. 5
figure 5

Normalized mean 124I concentration measured on the PET image, in a small (3 × 3 × 3 voxel) VOI at the approximate center of the 13-mm-diameter sphere for the centered phantom reconstructed with TOF information (a), for the off-center phantom reconstructed with TOF information (b), for the centered phantom reconstructed without TOF information (c), and for the off-center phantom reconstructed without TOF information (d) all shown as a function of the number of iterations. This measurement was done for scans acquired with 0, 0.75, 1.45, 2.23, 2.99, and 3.76 GBq of 131I in the background. Each curve has been normalized to the concentration seen after 100 iterations

Activity quantification when using high number of iterations

To circumvent these convergence-related inaccuracies, we analyzed the quantitative accuracy of images reconstructed with and without TOF information at 100 iterations of 16 subsets. 124I-PET images reconstructed with TOF and 100 iterations were more quantitatively accurate than images reconstructed with 2 iterations (Fig. 6a, b) except for the off-centered scans with131I background activity above 3.0 GBq.

Fig. 6
figure 6

124I activity concentration in the phantom’s spheres as a function of increasing 131I activity in the background measured on the PET image reconstructed with the OSEM algorithm with 100 iterations and 16 subsets. In a, the phantom was centered and reconstructed with TOF information. In b, the phantom was off-center and reconstructed with TOF information. In c, the phantom was centered and reconstructed without TOF information. And in d, the phantom was off-center and reconstructed without TOF information

The results for the nonTOF reconstructions using 100 iterations show that the nonTOF reconstructions outperformed the TOF reconstructions in quantitative accuracy (Fig. 6c, d). For the centered phantom, the nonTOF reconstruction remained accurate regardless of the level of 131I background. For the off-center phantom, however, there was a slight decrease in apparent activity seen in all spheres at 3.7 GBq of 131I activity.

Figure 7 shows the impact of iteration number on image quality for both the TOF (top row) and nonTOF (bottom row) reconstructions of the centered phantom having 3.7 GBq of 131I in the background. As the number of iterations is increased, conspicuity of the spheres (especially for the smallest) improves considerably although the noise increases slightly and the background level is reduced. Some spurious background activity remains especially for the TOF case (Supplemental Figure S5). For the off-center phantom, however, image quality for the TOF reconstructions was clearly degraded at the higher 131I activity levels compared to the nonTOF reconstructions (Supplemental Figure S6).

Fig. 7
figure 7

Transverse slice of the IEC phantom through the center of the hot spheres acquired with the phantom in the center position with 3.76 GBq of 131I in the background. The images on the top row (ac) were reconstructed with OSEM using TOF information with 16 subsets and 2, 25, and 100 iterations, respectively. In the second row (df), images were similarly reconstructed but without making use of TOF information

Discussion

The results of this study show that quantitative 124I-PET imaging can be done in the presence of therapeutic amounts of 131I on a GE D710 scanner if more iterations are used during the reconstruction. Our typical clinical image reconstructions are performed with TOF data using an OSEM algorithm involving 2 iterations and 16 subsets and PSF modeling. We found that with increasing levels of 131I in the phantom’s background, incomplete convergence resulted in quantitative errors and low image contrast. Increasing the number of iterations improved image quality and quantitative accuracy for both TOF and nonTOF reconstructions, but the number of iterations necessary was beyond what is typically used clinically and increased with increasing 131I levels.

We speculate that the overall slowing of the convergence rate is due to the extraordinarily high per-crystal singles rates caused by the 131I within these data sets (up to 42 kcps—see supplemental figure S7). High per-crystal singles rates, in turn, result in high numbers of random coincidences. It is typical (and true of the GE reconstruction algorithm) to add random coincidences and other corrections to the estimated true coincidences within each iterated loop of the reconstruction prior to taking the ratio relative to the measured prompt coincidence data in order to preserve the Poisson noise model assumed in OSEM reconstruction. It is this ratio that is sampled and used to update the image estimate during the backprojection step of the OSEM algorithm. When the randoms far exceed the trues, as they do here, this is effectively equivalent to adding a large number to two small numbers, before taking their ratio. Because the updated ratios tend to be much closer to unity, they slow convergence. We tested this hypothesis by artificially adding a constant (of magnitude similar to the 3.7 GBq 131I per LOR randoms) to both the measured prompts and estimated randoms projection data for the centered phantom with no 131I in the background (data not shown) and this caused a similar delay in convergence.

Most surprising, however, was that the nonTOF reconstructions outperformed the TOF reconstructions at the highest levels of 131I background. Generally, the use of TOF information during reconstruction would be expected to speed convergence and reduce noise in the images, essentially without a downside. But here we find that either the TOF information is itself compromised or the TOF-specific corrections for the various PET confounds are somehow becoming problematic under these conditions.

The 131I gammas, in addition to greatly increasing randoms, also increase the dead time (the mean dead-time correction factor per pixel increased from 1.02 without background activity to 3.78 for the off-center scan with 3.7 GBq of 131I in the background) and cause a high degree of pile-up in all detector blocks. This pile-up, in turn, could conceivably negatively impact the TOF measurement, though we did not test this directly. The pile-up can best be appreciated by looking at the raw prompt counts in projection space (supplemental Figure S8a and b). Pile-up causes the scintillation events occurring within a PET detector block to tend to appear to be positioned at the center of the block. Thus, each of the “dots” discernable in supplemental figure S8 corresponds to a detector block. It is also worth noting that both pile-up and the overall random events, prompts, and dead time are not uniform when the phantom is positioned off-center (see comparison between supplemental Figure S8a and b).

The GE D710 image reconstruction includes a correction for pile-up which along with the dead time and other corrections appears to have worked remarkably well in this data. However, small inaccuracies in these large corrections might explain the inaccuracies seen particularly in the off-center phantom at the highest 131I background level. For example, Fig. 4b shows that the average corrected number of trues over a region of the background is slightly negative. The number of trues being defined as the number of prompts minus random and scatter, if the number of estimated trues is negative (which does not have a physical reality), it suggests an overcorrection of the number of scatter and/or random events in that region. We hasten to point out that this was only true of the off-center phantom and it would be very unlikely to encounter a clinical data set this poorly placed. Similarly, we have estimated that each level of 131I that we placed within the phantom background corresponds to roughly 4 times that amount within a patient, thus the highest level of 131I we tried (3.7 GBq) is unlikely to be encountered clinically.

By showing that quantitative 124I-PET is feasible in the presence of large amount of 131I in the PET FOV, we laid the groundwork for investigating the uptake linearity between pre-therapeutic and therapeutic doses in RAI. Radioiodine therapies can sometimes involve the administration of up to 15 GBq (400 mCi) of 131I. We do not know whether the uptake of radioactive iodine predicted from a pre-therapeutic tracer dosimetry study accurately predicts the uptake for these high-dose therapies. This study demonstrates the feasibility of using 124I-PET to perform image-derived lesion dosimetry during the actual therapy and confirm the predictions of pre-therapeutic radiotracer studies. In addition, such a capability would allow us to conduct a rigorous study of radioiodine thyroid lesion stunning (i.e., significant reduction in radioiodine uptake following the administration of a tracer), in lesions where this phenomenon is observed.

Conclusions

The results of this study show that concomitant 124I-PET imaging for patients undergoing 131I therapy is feasible and should provide accurate activity quantification and satisfactory image quality for activities up to 3.76 GBq of 131I in the background. This result likely extends to other PET models from GE that have the same FOV size and share its method of dead-time determination and correction. The corrections applied by the data prior to reconstruction appear to be accurate but noise in the data appears to slow the rate of convergence during image reconstruction and using TOF information tended to reduce quantitative accuracy compared to nonTOF reconstructions, when both were fully converged. Increasing the number of iterations above what is typically used clinically greatly improves quantitative accuracy and image quality.

Availability of data and materials

This study involved measurements with phantom only and contains no clinical data. All the image data and analysis results are presented in the manuscript. The original PET/CT images will be made available upon request.

Abbreviations

FOV:

Field of view

GE:

General Electric

131I-mIBG:

Iodine-131-m-iodobenzylguanidine

LOR:

Line of response

LYSO:

Lutetium-yttrium oxyorthosilicate

NEMA IEC:

National Electrical Manufacturers Association and International Electrotechnical Commission

OSEM:

Ordered subset expectation maximization

PET:

Positron emission tomography

RAI:

Radioactive iodine

ROI:

Region of interest

TOF:

Time of flight

TRT:

Targeted radionuclide therapies

VOI:

Volume of interest

References

  1. Sgouros G, Hobbs RF, Atkins FB, Van Nostrand D, Ladenson PW, Wahl RL. Three-dimensional radiobiological dosimetry (3D-RD) with I-124 PET for I-131 therapy of thyroid cancer. Eur J Nucl Med Mol Imaging. 2011;38(S1):41–7. https://doi.org/10.1007/s00259-011-1769-1.

    Article  CAS  Google Scholar

  2. Kolbert KS, Pentlow KS, Pearson JR, Sheikh A, Finn RD, Humm JL, et al. Prediction of absorbed dose to normal organs in thyroid cancer patients treated with 131I by use of 124I PET and 3-dimensional internal dosimetry software. J Nucl Med. 2007;48:143–9.

    CAS  PubMed  Google Scholar

  3. Kreissl MC, Janssen MJR, Nagarajah J. Current treatment strategies in metastasized differentiated thyroid cancer. J Nucl Med. 2019;60(1):9–15. https://doi.org/10.2967/jnumed.117.190819.

    Article  CAS  PubMed  Google Scholar

  4. Huang SY, Bolch WE, Lee C, Van Brocklin HF, Pampaloni MH, Hawkins RA, et al. Patient-specific dosimetry using pretherapy [(1)(2)(4)I]m-iodobenzylguanidine ([(1)(2)(4)I]mIBG) dynamic PET/CT imaging before [(1)(3)(1)I]mIBG targeted radionuclide therapy for neuroblastoma. Mol Imaging Biol. 2015;17(2):284–94. https://doi.org/10.1007/s11307-014-0783-7.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  5. Freudenberg LS, Jentzen W, Stahl A, Bockisch A, Rosenbaum-Krumme SJ. Clinical applications of 124I-PET/CT in patients with differentiated thyroid cancer. Eur J Nucl Med Mol Imaging. 2011;38(Suppl 1):S48–56. https://doi.org/10.1007/s00259-011-1773-5.

    Article  PubMed  Google Scholar

  6. Pacini F, Lippi F, Formica N, Elisei R, Anelli S, Ceccarelli C, et al. Therapeutic doses of iodine-131 reveal undiagnosed metastases in thyroid cancer patients with detectable serum thyroglobulin levels. J Nucl Med. 1987;28:1888–91.

    CAS  PubMed  Google Scholar

  7. Jentzen W, Weise R, Kupferschlager J, Freudenberg L, Brandau W, Bares R, et al. Iodine-124 PET dosimetry in differentiated thyroid cancer: recovery coefficient in 2D and 3D modes for PET(/CT) systems. Eur J Nucl Med Mol Imaging. 2008;35(3):611–23. https://doi.org/10.1007/s00259-007-0554-7.

    Article  PubMed  Google Scholar

  8. Beijst C, de Keizer B, Lam M, Janssens GO, Tytgat GAM, de Jong H. A phantom study: should (124) I-mIBG PET/CT replace (123) I-mIBG SPECT/CT? Med Phys. 2017;44(5):1624–31. https://doi.org/10.1002/mp.12202.

    Article  CAS  PubMed  Google Scholar

  9. Beijst C, Kist JW, Elschot M, Viergever MA, Hoekstra OS, de Keizer B, et al. Quantitative comparison of 124I PET/CT and 131I SPECT/CT detectability. J Nucl Med. 2016;57(1):103–8. https://doi.org/10.2967/jnumed.115.162750.

    Article  CAS  PubMed  Google Scholar

  10. Lubberink M, van Schie A, de Jong HW, van Dongen GA, Teule GJ. Acquisition settings for PET of 124I administered simultaneously with therapeutic amounts of 131I. J Nucl Med. 2006;47:1375–81.

    CAS  PubMed  Google Scholar

  11. Braad PE, Hansen SB, Hoilund-Carlsen PF. Impact of high (131)I-activities on quantitative (124)I-PET. Phys Med Biol. 2015;60(13):5297–312. https://doi.org/10.1088/0031-9155/60/13/5297.

    Article  CAS  PubMed  Google Scholar

  12. Beattie BJ, Finn RD, Rowland DJ, Pentlow KS. Quantitative imaging of bromine-76 and yttrium-86 with PET: a method for the removal of spurious activity introduced by cascade gamma rays. Med Phys. 2003;30(9):2410–23. https://doi.org/10.1118/1.1595599.

    Article  PubMed  Google Scholar

  13. Lubberink M, Herzog H. Quantitative imaging of 124I and 86Y with PET. Eur J Nucl Med. 2011;38(Suppl 1):S10–8. https://doi.org/10.1007/s00259-011-1768-2.

    Article  Google Scholar

Download references

Acknowledgements

The authors would like to thank Daniel Lafontaine for the technical assistance.

Funding

This work was funded by NCI R01 CA201250 (PIs: Steven M. Larson, John L. Humm, and Michael Tuttle) entitled “124I-NaI PET: Building block for precision medicine in metastatic thyroid cancer” and the NCI Cancer Center Support Grant P30 CA008748 (PI Craig Thompson).

Author information

Authors and Affiliations

Authors

Contributions

LF performed the phantom measurements, assisted in the data analysis, and wrote the initial draft of the manuscript. BB assisted with the phantom measurements, performed most of the image processing and data analysis, generated several of the manuscript figures, and assisted with manuscript editing. KP assisted with the phantom measurements, data analysis, and manuscript editing. SL provided valuable input to the design of the experiments and supported the experimental costs through grant funding.

JH provided oversight of all experiments and data analysis and assisted in editing the manuscript. The authors read and approved the final manuscript.

Corresponding author

Correspondence to John L. Humm.

Ethics declarations

Ethics approval and consent to participate

This section is not applicable since there are no patient images or information, nor were any animal experiments performed. This manuscript contains only studies conducted on phantoms.

Consent for publication

There are no reproduced images or data from another publication in this submitted manuscript.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1: Figure S1.

Image show VOI placement. Each circle represents a 5.5 cm diameter spherical VOI placed to include virtually all the activity emanating from the enclosed physical sphere despite partial volume affects. Activity concentrations within the spheres were calculated by dividing the total activity measured within each VOI by the volume of the physical sphere corrected for any small air bubbles. For the background VOI, the mean value was taken.

Additional file 2: Figure S2.

Video showing placement of ROIs used to sample large sphere in projection space for centered phantoms.

Additional file 3: Figure S3.

Normalized mean 124I concentration measured on the PET image, in a small (3x3x3 voxel) VOI at the approximate center of the 10 mm (A), 13 mm (B), 22 mm (C), 28 mm (D), 37 mm (E) diameter sphere for the phantom imaged off-center and reconstructed without TOF information shown as a function of the number of iterations. This measurement was done for scans acquired with 0, 0.75, 1.45, 2.23, 2.99, 3.76 GBq of 131I in the background. Each curve has been normalized to the concentration seen after 100 iterations.

Additional file 4: Figure S4.

Same as Fig. S3 except for a centered phantom.

Additional file 5: Figure S5.

Background activity measured on the 124I PET image of the NEMA IEC phantom reconstructed with the OSEM algorithm with 2 and 100 iterations, as a function of increasing activity of 131I in the background and for the phantom centered and off centered within the field of view, using TOF information in (A) and without TOF information in (B).

Additional file 6: Figure S6.

Transverse slice of the IEC phantom through the center of the hot spheres acquired with the phantom in the off-center position. The images on the top row (A, B, C) were reconstructed with OSEM using TOF information with 16 subsets and 100 iterations while the data was acquired with 2.2, 3.0 and 3.7 GBq of 131I in the background, respectively. In the second row (D, E, F) images were similarly reconstructed but without making use of TOF information.

Additional file 7: Figure S7.

The maximum singles count rate of any crystal as a function of 131I in the phantom when centered in the FOV and when 11.2 cm off-center.

Additional file 8: Figure S8.

Projection image of the number of prompts for increasing 131I activity, for centered (A) and off-centered (B) acquisitions.
