Predictive power of the post-treatment scans after the initial or first two courses of [177Lu]-DOTA-TATE

EJNMMI Physics volume 5, Article number: 36 (2018) Cite this article

Abstract

Background

The aim of this study was to evaluate the predictive power of the absorbed dose to kidneys after the first course of treatment with [177Lu]-DOTA-TATE for neuroendocrine tumors (NETs) on the cumulative kidney absorbed dose after 3 or 4 cycles of treatment. Post-treatment scans (PTS) are acquired after each cycle of peptide receptor radionuclide therapy (PRRT) with [177Lu]-DOTA-TATE for personalized radiation dosimetry in order to ensure a cumulative absorbed dose to kidneys under a safety threshold of 25 Gy.

One hundred eighty-seven patients who completed treatment with [177Lu]-DOTA-TATE and underwent PTS for dosimetry calculation were included in this retrospective study. The correlation between the cumulative absorbed dose to kidneys after the completion of treatment and the absorbed dose after the first cycle(s) was studied. Multilinear regression analysis was done to predict the cumulative absorbed dose to the kidneys of the subsequent cycles, and an algorithm for the follow up of kidney absorbed dose is proposed.

Results

Patients whose absorbed dose to kidneys after the first cycle of treatment is below 5.6 Gy can receive four cycles of treatment with a cumulative dose less than 25 Gy (p < 0.1). For the other patients, the cumulative absorbed dose after 3 or 4 cycles of treatment can be predicted after the second cycle of treatment to allow for an early decision regarding the number of cycles that may be given.

Conclusions

The follow up of kidney absorbed dose after PRRT can be simplified with the algorithm presented in this study, reducing by one-third the number of post-treatment scans and reducing hospitalization time for more than half of the treatment cycles.

Background

Lutetium-177-DOTA-(Tyr3)-octreotate ([177Lu]-DOTA-TATE) is used for peptide receptor radionuclide therapy (PRRT) of metastatic progressive neuroendocrine tumors (NETs). Its efficiency has been proven by several studies [1,2,3] compared to cold somatostatin analogs. Commonly, recommended schedule of treatment with [177Lu]-DOTA-TATE consists of a so-called empiric protocol of four fixed doses of 7.4 GBq (200 mCi) infusions every 6–12 weeks [1, 4,5,6]. This protocol is in accordance with the Food and Drugs Administration (FDA) approval and the European Medicines Agency (EMA) summary of product characteristics [7, 8], provided that the cumulative absorbed dose to the most radiosensitive non-pathological tissues will not exceed safety limits [9,10,11,12]. The main late side effects of this treatment are myelotoxicity and renal toxicity [10, 12,13,14,15,16]. Therefore, the limiting factor of the administered dose is the radiation dose to the critical organs, kidneys and bone marrow. Nevertheless, it has been pointed out by Sandström [17] that the dose to bone marrow is rarely a limiting factor (1.5% of the patients). The true threshold of the kidney dose that predisposes patients to toxicity is not precisely known. Preliminary works estimate its value around 23 Gy [17,18,19] based on external beam radiotherapy, whereas others argue for absorbed doses of about 30 Gy [12, 20]. In our institution, treatment series is stopped if the expected cumulative absorbed dose will exceed 25 Gy, unless otherwise decided by a multidisciplinar staff based on assessment of the individual benefit/risk ratio. The occurrence of toxicity in the patients with high cumulative kidney absorbed dose may be related to risk factors such as diabetes and hypertension [5, 12]. Individual dosimetry by quantitative single photon emission computed tomography (SPECT) after each cycle of treatment monitors the cumulative absorbed dose to the organs at risk to decide whether the patient can receive more cycles of treatment. Following the EANM/MIRD guidelines [21], it is recommended to perform full dosimetry after the first treatment with three SPECT/CT acquisitions at 24, 96, and 168 h after the administration of [177Lu]-DOTA-TATE. For the subsequent treatment cycles, only a single SPECT/computed tomography (CT) study approximately 24 h after the treatment is performed assuming an unchanged effective half-life of [177Lu]-DOTA-TATE between treatments as proved and proposed by Garske et al. [22].

Based on preliminary observations of the low variability of the kidney absorbed dose across successive cycles of treatment administered empirically, we hypothesized that the cumulative absorbed dose would be correlated to the absorbed dose after the first cycle(s). We therefore retrospectively analyzed the kidney dosimetry data of all the patients who completed serial treatments at our institution, to evaluate the predictive power of the initial or first two courses of treatment on the cumulative absorbed dose to kidneys after completion of treatment.

Methods

Patients

Eligibility for PRRT included lesions with high somatostatin receptor (SSTR)-expressing disease on gallium-68-DOTA-(Tyr3)-octreotate ([68Ga]-DOTA-TATE) positron emission tomography (PET)/CT scan where the tumor uptake was greater than the background liver activity, together with evidence of progressive disease within 12 months, as assessed by combination of increasing biochemical marker (chromogranin A), and new or enlarging lesions on SSTR PET/CT imaging, contrast-enhanced CT, or magnetic resonance imaging (MRI), or symptoms despite conventional management.

Patients were excluded from PRRT if disease demonstrated low SSTR expression, renal impairment (creatinine clearance < 50 ml/min), hypoalbuminemia (< 25 g/L), thrombocytopenia (< 70 × 109/L), pancytopaenia (hemoglobin < 10 g/dL and white cell count < 3 × 109/L), Eastern Cooperative Oncology Group (ECOG) performance score 4, expected survival < 3 months, or confirmed pregnancy.

All consecutive patients who started and completed their series of treatments at our institution between October 23th, 2011 and September 27th, 2017 were included in this study (np = 191 patients). Among these patients, 91 underwent four cycles, 38 three cycles, 39 two cycles, and 23 patients one cycle.

Among the patients who did not complete 4 cycles, 14 were stopped because of an expected kidney absorbed dose after the following cycle higher than 25 Gy. Indeed, at our institution, before giving a subsequent cycle of treatment, the absorbed doses to kidneys during the previous (p) treatments are examined and an expected cumulative absorbed dose after the following (p + 1) cycle is determined. The latter is calculated as the mean absorbed dose over the previous (p) treatments to which is added the cumulative absorbed dose over these (p) treatments. We withheld PRRT if the expected cumulated absorbed dose after the subsequent treatment was predicted to exceed 25 Gy for kidneys (except for very specific cases where cost/benefit ratio led us to continue treatment). For instance, a cumulative absorbed dose above 18.75 Gy after the third cycle would lead to stop the treatment.

The reasons that led to stop the treatment before the fourth course are shown in Fig. 1. Ten patients (more that 5% of our population of patients) were discontinued due to an excessive bone marrow absorbed dose. As previously mentioned above bone marrow dosimetry is reported in the literature to be rarely the limiting factor, in no more than 1.5% of the patients, a much smaller number than in our institution. This appeared to be the result of an error in the in-house dosimetry calculation software, corrected in January 2017 (after this date, no patient was stopped for this reason). In 15 patients, who had received previous PRRT abroad, treatment at our institution was planned as a short series of only 2–3 “salvage” treatments, so these treatment series were stopped for safety after 1 to 3 cycles regardless to kidney absorbed dose.

Fig. 1
figure 1

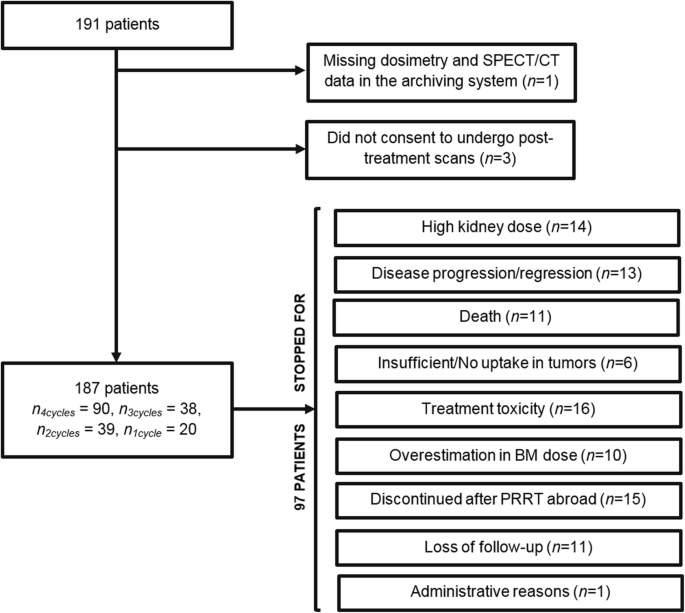

Chart of patient inclusion. Legend: Chart of patient inclusion. n4cycles, n3cycles, n2cycles and n1cycle represent the number of patients included in the study who have completed respectively 4, 3, 2, or 1 cycle(s).

Full size image

In all, 187 patients (110 men, 77 women; average age 58 years, range 11–89 years) were included in this retrospective study. Patient demographics are shown in Table 1.

Table 1 Demographic data for the patients included in the study
Full size table

PRRT therapy

[DOTA0,Tyr3] Octreotate was purchased either from ABX (Radeberg, Germany) or CS Bio Co. (Menlo Park, CA, USA). PerkinElmer, Inc. (Waltham, MA, USA) supplied 177LuCl3. [177Lu]-DOTA-Octreotate was locally prepared by Isorad Ltd. (Soreq NRC, Yavne, Israel). All yields passed a quality control for radiochemical purity including high-performance liquid chromatography (HPLC) and instant thin-layer chromatography (ITLC). Only yields with labeling over 99% were accepted for treatment.

Infusion of amino acids (Vamin 18 g N/L electrolyte-free, Fresenius Kabi) was started at least half an hour prior to administration of the radiopharmaceutical and continued for several hours (4–6 h). As standard protocol, patients received 1.5 L of amino acids solution. The radioactive ligand [177Lu]-DOTA-TATE, diluted in 200 ml of saline, was co-administered intravenously over a period of 30 min. For the 187 patients included in this study, the mean activity administered on 581 given cycles was 7.2 ± 0.7 GBq (195.4 ± 18.9 mCi) with a median cumulative activity of 22 GBq (6–31 GBq). The median number of therapy cycles per patient was 3 and the interval between them was 6–12 weeks.

Post-treatment scan acquisition

All 187 patients included in the study underwent post-treatment scans after each cycle of treatment. Post-treatment scans include a planar whole-body examination under a gamma camera and a SPECT/CT of the abdomen including kidneys, liver, and spleen. Due to organizational constraints in our department, serial SPECT/CTs were acquired 20 h, 25 h, and 7 days after injection of the first therapeutic dose. A single SPECT/CT was acquired after 20 h for the subsequent cycles assuming minor changes in the effective half-life for organs of interest [22]. A post-treatment scan lasts about 35 min (planar acquisition: 15 min; 1 field of view (FOV) SPECT/CT: 20 min).

The first 31 patients underwent imaging on a hybrid SPECT/CT Infinia (International General Electric, General Electric Medical Systems, Haifa, Israel). For all the other patients, images were acquired on a hybrid SPECT/CT Discovery NM/CT 670 camera (International General Electric, General Electric Medical Systems, Haifa, Israel). Both systems combine a dual-head scintillation SPECT camera with an axial FOV of 40 × 54 cm, a NaI(Tl) crystal thickness of 9.5 mm, and 59 photomultiplier tubes (PMT). All functional images were acquired with a 20% energy window around the main photopeak of 177Lu (208 keV; 10.4% probability) [23] with medium energy general purpose (MEGP) collimators. Whole body images were acquired with step-and-shoot mode with 180 s per view in a 256 × 1024 matrix. SPECT images were acquired over 360° with 30 angular steps per head and with a 30 s exposure per frame (15-min acquisition) in a 128 × 128 matrix size. Anatomical images were acquired on the Infinia with a four-slice helical CT scanner using a tube voltage of 120 kV and a current of 2.5 mA and with the integrated BrightSpeed multidetector CT (24 rows – maximum 16 slices/rotation) on the Discovery NM/CT 670 using a tube voltage of 120 kV and the Smart current option (80–220 mA).

Before July 2016, calibration of SPECT images was performed on a series of 177Lu 20-mL vials placed in the gamma camera FOV with low known activities ranging from 11.1 MBq (0.3 mCi) to about 140 MBq (3.8 mCi). During this time, no scatter correction was applied and thus contributions from scattered photons were ignored.

From July 2016, calibration of SPECT images was based on a series of 30 SPECT acquisitions of a 20-mL vial placed in the center of the gamma camera FOV with a known activity of 177Lu ranging from 114.7 MBq (3.1 mCi) to 7215 MBq (195 mCi). The 177Lu calibration source was placed in the center of 8 1-L saline bags with two additional 177Lu sources in order to simulate an amount of scatter similar to a clinical scan. For scatter estimation, the dual energy window (DEW) method was used. This method consists of measuring the scatter in an energy window juxtaposed just below the main photopeak window (208 keV). Here, the scatter window was placed ± 10% around 166.4 keV as proposed by Beauregard et al. [24]. Then, a pixel-by-pixel correction subtracting the scatter counts from the main photopeak ones is done. This correction uses a weighting factor, which depends on the width of the main peak and scatter energy windows [25]. The measured paralyzing dead-time constant was 0.66 ± 0.04 μs. However, no dead-time correction was applied.

Image analysis and dosimetry

Image analysis for dosimetry was performed using the General Electric (GE) Dosimetry Toolkit (DTK) software [26] available for the Xeleris 3.0 Workstation (International General Electric, General Electric Medical Systems, Haifa, Israel). The ordered subsets expectation maximization (OSEM) algorithm with attenuation correction (from CT attenuation maps), resolution recovery (for blurring), and scatter correction when available (from July 2016) included in the Xeleris 3.0 workstation were used.

As detailed in a previous work [27], radiation-absorbed doses were computed using an in-house interactive data language (IDL) code developed in our department. The code takes as input data the output file of the GE DTK software and then performs mono-exponential curves fitting, numerical integrations, and dosimetry calculation. The computation of the absorbed dose is based on the method described in [28] for tumors and on the medical internal radiation dose (MIRD) formalism [29] for healthy organs (kidneys, liver, spleen, bone marrow, remainder of the body). Reference [27] provides more precision about the calculation of absorbed dose to bone marrow.

Statistical methods

Let Di be the kidney absorbed dose after the ith treatment cycle.

Simple linear regression was used to assess relationship between D1 and D2 + D3 + D4. We tested the hypothesis that the residuals are normally distributed by a Lilliefors test and that the successive values are mutually independent by a Runs test. Quantitative measures correlation was quantified with the Pearson’s r coefficient.

Multivariate linear regression analysis was used to assess the relationships between D3 or D3 + D4 versus D1 and D2, and beetween D4 versus D1, D2, and D3.

We used the predicted Y values method [30] (chapter 19 and 20) to predict score on D2 + D3 + D4 for each possible value of D1, on D3 or D3 + D4 for each possible value of D1 and D2 and on D4 for each possible value of D1, D2, and D3. The probability that the cumulative absorbed dose DT after 3 or 4 cycles exceeds 25 Gy was obtained from the t statistic values with a p value < 0.1 considered significant. For the probability of erroneously precluding a cycle of treatment that would not have led to the cumulative absorbed dose to exceed 25 Gy, a p value of 0.05 was considered significant. We deliberately chose a different p value for these two probability since the side effects of PRRT are less well established than its efficiency.

Statistical analyses were performed using OriginPro 9.1 software (OriginLab, Northampton, MA, USA) and Matlab (MATLAB and Statistics Toolbox Release 2017a, The MathWorks, Inc., Natick, MA, USA).

Results

Of the 187 patients, 90 completed 4 courses of treatment, of whom 78 had a cumulative kidney absorbed dose DT less than the 25 Gy safety threshold. Fourteen patients had their treatment discontinued after the third cycle for kidney dosimetry reasons, since DT already exceeded 25 Gy or was expected to exceed this threshold after a fourth cycle. For the patients who did not receive more than 2 cycles, kidney-absorbed dose was never the reason for stopping the treatment. Figure 2 represents the cumulative kidney absorbed dose DT for all the 187 patients as a function of D1.

Fig. 2
figure 2

Cumulative kidney absorbed dose versus kidney absorbed dose after the first cycle. Legend: Relationship between the cumulative absorbed dose to kidneys and the absorbed dose after the first cycle. Horizontal dashed line: 25 Gy threshold. Vertical dashed line: threshold under which all patients completed 4 cycles with DT under 25 Gy.

Full size image

Relationship between D 1 and D 2 + D 3 + D 4

Several functions have been tested to fit the data of the 90 patients who completed 4 cycles. The best fit has been found to be a linear fit, as shown in Fig. 3. The predicted Y values method gives a threshold of T1 = 5.6 Gy such as if D1 < T1, the risk of (D1 + D2 + D3 + D4) exceeding 25 Gy is less than 10% and less than 5% of exceeding 26.1 Gy. For these values of D1, it is safe to complete 4 cycles without any additional post-treatment scans (PTS). A value of 5.6 Gy is the 66th percentile of the kidney absorbed dose after the first cycle for our population of patients.

Fig. 3
figure 3

Relationship between D1 and D2 + D3 + D4. Legend: Relationship between the sum of the doses D2 + D3 + D4 and the dose after the first cycle D1. The standard deviations of the fitted data are shown in dotted line.

Full size image

For the other patients in whom treatment was discontinued due to high kidney absorbed dose and with D1 > 5.6 Gy, we analyzed the incremental amount of information stemming from D2.

Relationship between D 1, D 2, and D 3 or D 3 + D 4

For these measurements, a multivariate linear regression analysis was done: for D3 + D4, on the 90 patients who completed 4 courses of treatment, and for D3 on the 128 patients who completed at least 3 courses. The following relations have been obtained:

$$ \left({D}_3+{D}_4\right)={a}_1+{b}_1\times {D}_1+{c}_1\times {D}_2 $$
(1)

with a1 = 1.39, b1 = 0.56, and c1 = 1.19 (see Fig. 4a) and,

Fig. 4
figure 4

Relationship between D1, D2, and D3 + D4 or D3. Legend: Relationship between D1, D2 and a D3 + D4 and b D3. The multilinear fits are shown (blue planes).

Full size image
$$ {D}_3={a}_2+{b}_2\times {D}_1+{c}_2\times {D}_2 $$
(2)

with a2 = 0.37, b2 = 0.14, and c2 = 0.83 (see Fig. 4b). Expectedly, we find that c1 > b1 and c2 > b2, reflecting the fact that for treatments that are closer in time more similar dosimetry results are obtained.

With these models, the risk of (D1 + D2 + D3 + D4) or (D1 + D2 + D3) exceeding 25 Gy can be computed as a function of D1 and D2 using the Y predicted values method. Figures 5 and 6 show respectively the probability contour plots to exceed 25 Gy after 4 and 3 cycles as a function of D1 and D2. The operational meaning of the preceding results is that for values of D1 and D2 in zone A (see Fig. 5), no further PTS is needed to decide to give 4 cycles of treatment (p < 0.1). At the other end of the spectrum, for values of D1 and D2 at the intersection of zones C and D (see Fig. 6), we can predict the cumulative absorbed dose to be below 25 Gy (p < 0.1) after 3 cycles and above after the fourth one (p < 0.05). For these values, it is safe and justified to give only 3 cycles of treatment without further follow-up of the kidney dosimetry. In zone E, the decision whether or not administer a third cycle is based on an individual basis, while in zone F the treatment has to be stopped. For absorbed doses in zone B, the information of a third PTS is needed to decide whether to stop after the third treatment.

Fig. 5
figure 5

Probability contour plots to exceed 25 Gy after four treatment cycles in function of D1,D2. Legend: Probability contour plots of D1 + D2 + D3 + D4 exceeding 25 Gy as a function of D1 and D2. In zone A. the probability is less than 10%. In zone C, it is superior to 95%.

Full size image
Fig. 6
figure 6

Probability contour plots to exceed 25 Gy after three treatment cycles in function of D1,D2. Legend: Probability contour plots of D1 + D2 + D3 exceeding 25 Gy as a function of D1 and D2. In zone D, the probability is less than 10%. In zone F, it is superior to 95%.

Full size image

Relationship between D 4 and D 1, D 2, D 3

A multivariate linear analysis gives:

$$ {D}_4={a}_3+{b}_3\times {D}_1+{c}_3\times {D}_2+{d}_3\times {D}_3 $$
(3)

with a3 = 0.99, b3 = 0.12, c3 = 0.19, and d3 = 0.50. This model lets us predict the expected cumulative absorbed dose after the fourth cycle and to manage the patient accordingly. This approach is more precise than the previous management set up that was to withhold treatment if the cumulative absorbed dose was above 18.75 Gy after the third cycle.

Management protocol

Based on the observations described in the previous section, we propose an algorithm for the follow-up of renal dosimetry (Fig. 7).

Fig. 7
figure 7

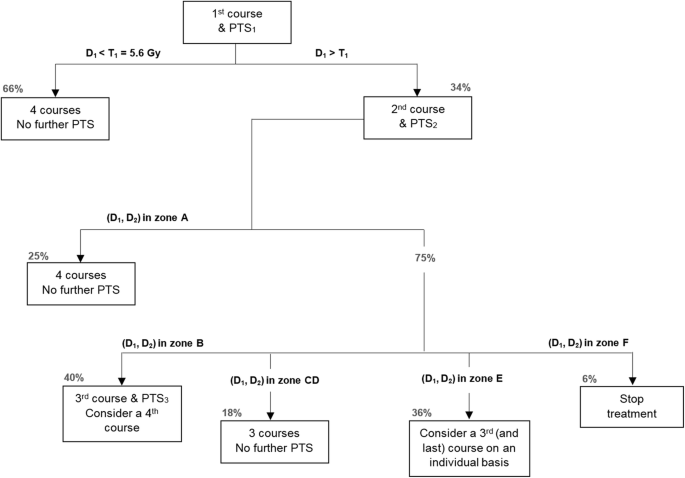

Algorithm for the follow-up of renal dosimetry. Legend: Algorithm for the follow-up of renal dosimetry. Zones A–F are represented in Figs. 5 and 6. Percentages are indicated for our study population.

Full size image

For the 187 patients of the study, using the current empiric protocol, the number of PTS was 946, and the number of inpatient days was 572 (in our institution and with the current protocol patients stay the night following the radiopharmaceutical administration for performing the PTS). Based on the assumption that the future patients treated in our department will be a similar cohort than the population of patients on which our study was done, we project a decrease of about 34% in the number of PTS (from 946 to 626)—a considerable improvement in terms of patient comfort, as well as scanner and technologist time. The number of hospitalization nights is expected to decrease by about 56% (since the patient will not need any more to stay overnight for a dosimetry the day after—for a more thorough overview of the inpatient vs. ambulatory setup issue and patient release, see “Discussion” section).

Influence of a different threshold

What would be the consequence of a change in the safety threshold of cumulative kidney absorbed dose?

For D1 = 6.2 Gy, the probability of DT exceeding 25 Gy after 4 cycles is 18.7% while by choosing a higher safety threshold of 29 Gy as proposed in refs. [12, 20], this probability would decrease to 2.0%. For patients for whom D1 < 6.75 Gy, 95% of them would have a cumulative absorbed dose under 29 Gy after 4 cycles.

Influence of the intra- and inter-observer variability

It has been shown in [27] that the intra- and inter-observer variability for kidney absorbed dose calculation is respectively equal to − 1.0 ± 3.4% and − 6.5 ± 6.8%. Such deviations do not lead to unsafe management of the patients. Indeed, in the worse case scenario where the inter-observer variability reaches 13.3%, if observer 1 calculates an absorbed dose 5.6 Gy and observer 2 a dose of 6.3 Gy (5.6 Gy + 13.3%), the probability to exceed 27 Gy after 4 cycles is inferior to 10%. This is also true for management of the patients using D1 and D2, and D1, D2, and D3.

Discussion

Whether or not the patients treated empirically at fixed activity with [177Lu]-DOTA-TATE should have a follow-up of the dosimetry to the critical organs is subject to controversy. In the NETTER-1 trial [3], post-treatment dosimetry was not part of the protocol, although a sub-study on a small sample of patients did include dosimetry. On the other hand, some authors [2, 5, 16, 24, 31] do recommend performing post-treatment scan in order to assess the radiation absorbed dose to critical organs and manage the patients accordingly. Also, there is scarce knowledge about the threshold of maximal safe radiation dose to the kidneys, mainly because of the lack of long-term data for this recently introduced treatment. The current accepted thresholds are inferred from external beam radiation treatments, whose energy deposit is obtained in a fraction of second while being extended over days and weeks in PRRT. Further studies that would prospectively assess the maximum safe absorbed dose to kidneys of [177Lu]-DOTA-TATE are needed.

Our study shows that in the scope of four empiric administrations of 7.4 GBq, the dosimetry after each cycle of treatments is often redundant. Indeed, for about two-third of the patients, it is already known after the first cycle that the cumulative dose to kidneys after 4 cycles will not exceed the safety threshold of 25 Gy, thus alleviating the need for further follow up of the kidney dosimetry. What are the logistical implications of these results? In our institution, a large tertiary center with the national referral NET unit treating patients from all over the country and from abroad, the treatment is given in an inpatient setting with patients staying the night following the treatment for radiation safety considerations and for performing the post-treatment scan the next day. Indeed, for dosimetry purpose, PTS cannot be performed too close to the administration of the radiopharmaceutical (about after 24 h as specified by the EANM/MIRD guidelines [21]) in order to model the TACs in their late descending phase [32]. An early measurement in the uptake phase could lead to an over (measurement of high activity in the uptake phase) or underestimation (early measurement in this phase) of the residence times and therefore of the absorbed doses. However, as far as radiation safety is concerned, the outpatient setting is possible as shown by Turner [33] and Calais et al. [34] for patients treated with 7.8 GBq of [177Lu]-DOTA-TATE, who attained the radiation exposure release limit 6 h after the injection of the radiopharmaceutical. In Turkey, Abuqbeitah et al. [35] measured a similarly maximum release time of about 5 h after a 5.5 GBq [177Lu]-DOTA-TATE therapy. In our center, in the absence of national legislation for patient release after PRRT treatments, our local recommendations are to follow the Australian Radiation Protection and Nuclear Safety Agency where patients can be released if the radiation exposure dose rate at 1 m is below 25 μSv/h [36]. Therefore, for the patients who, based on our results, do not need post-treatment dosimetry, release after a few hours of decay (about 6 h) is possible, without the need to return to the hospital the next day. This would lead to a reduction by 56% of hospitalization nights (notwithstanding a few exceptional cases for whom the clinical presentation or a poor treatment tolerance imposed hospitalization). A 15-min planar whole-body examination could be performed just before the release in order to confirm uptake and visually evaluate the functional response. In the case of progression or of new metastases, a quick SPECT/CT should be performed to explore the findings.

For the calculation of the dosimetry to bone marrow, withholding PTS prevents from estimating the cross-dose. The self-dose, contributing the majority (about 70%) of the bone marrow total dose [17], is estimated from blood. For patients with a good response to treatment, or a stable disease, the PTS after the first cycle can be used to estimate the cross dose. The (very rare) patients that may have a dose to bone marrow near the threshold can have a personalized follow up.

There are several limitations to our study. First, it does not provide a theoretical model that would justify the linear dependence between data from early and late cycles. Second, its validity is limited to the protocol of dosimetry calculation that we use in our institution and its implementation in other centers may need standardization of the camera acquisition parameters and the dosimetry protocol. In others words, it may very well be that the values that we give in our algorithm of follow up may differ in other centers. Most importantly, our study was done in the framework of the empiric protocol of 4 cycles of a fixed activity of 7.4 GBq. It has been shown that patients receiving a fixed amount of activity are not receiving optimal care [37,38,39], since the dosimetry is not taken into account to optimize the activity injected. There is growing evidence that the injected activity and the number of treatments can be tuned to dosimetry results [40, 41].

The emergence of the idea of personalized dosimetry-based treatments and the fact that the true threshold of toxicity to kidneys may be higher than 25 Gy mean that more than 4 cycles of treatment and/or variable doses higher than 7.4 GBq may be recommended in the future. In this case, the dosimetry would then be fully meaningful and should be recommended after each PRRT cycle.

Conclusion

In this study, we show how the predictive power of kidney-absorbed dose after the first treatments by [177Lu]-DOTA-TATE can be used to reconsider the need for further post-treatment scans for many patients. Our study shows that in the scope of empiric administrations, where 4 cycles of treatments of 7.4 GBq are administered, about one-third of the post-treatment scans for dosimetry are unnecessary. Moreover, according to our local procedures, where patients with a radiation exposure dose rate < 25 μSv/h at 1 m are released after PRRT, this new protocol may reduce hospitalization nights by half. These results can greatly improve the comfort of the patients as well as scanner and technologist time and reduce the treatment expenses without compromising the safety of patient management.

Abbreviations

[177Lu]-DOTA-TATE:

Lutetium-177-DOTA-(Tyr3)-octreotate

[68Ga]-DOTA-TATE:

Gallium-68- DOTA-(Tyr3)-octreotate

CT:

Computed tomography

DEW:

Dual energy window

DTK:

Dosimetry Toolkit

ECOG:

Eastern Cooperative Oncology Group

EMA:

European Medicines Agency

FDA:

Food and Drugs Administration

FOV:

Field of view

GE:

General Electric

HPLC:

High-performance liquid chromatography

IDL:

Interactive data language

ITLC:

Instant thin-layer chromatography

MEGP:

Medium energy general purpose

MIRD:

Medical internal radiation dose

MRI:

Magnetic resonance imaging

NETs:

Neuroendocrine tumors

OSEM:

Ordered subsets expectation maximization

PET:

Positron emission tomography

PMT:

Photomultiplier tube

PRRT:

Peptide receptor radionuclide therapy

PTS:

Post-treatment scans

SPECT:

Single photon emission computed tomography

SSTR:

Somatostatin receptors

References

  1. Kwekkeboom DJ, de Herder WW, Kam BL, van Eijck CH, van Essen M, Kooij PP, et al. Treatment with the radiolabeled somatostatin analog [177 Lu-DOTA 0,Tyr3]octreotate: toxicity, efficacy, and survival. J Clin Oncol Off J Am Soc Clin Oncol. 2008;26:2124–30.

    Article  CAS  Google Scholar

  2. Kam BLR, Teunissen JJM, Krenning EP, de Herder WW, Khan S, van Vliet EI, et al. Lutetium-labelled peptides for therapy of neuroendocrine tumours. Eur J Nucl Med Mol Imaging. 2012;39(Suppl 1):S103–12.

    Article  PubMed  CAS  Google Scholar

  3. Strosberg J, El-Haddad G, Wolin E, Hendifar A, Yao J, Chasen B, et al. Phase 3 trial of 177Lu-dotatate for midgut neuroendocrine tumors. N Engl J Med. 2017;376:125–35.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  4. Bodei L, Mueller-Brand J, Baum RP, Pavel M, Hörsch D, O’Dorisio MS, et al. The joint IAEA, EANM, and SNMMI practical guidance on peptide receptor radionuclide therapy (PRRNT) in neuroendocrine tumours. Eur J Nucl Med Mol Imaging. 2013;40:800–16.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  5. Bodei L, Cremonesi M, Grana CM, Fazio N, Iodice S, Baio SM, et al. Peptide receptor radionuclide therapy with 177Lu-DOTATATE: the IEO phase I-II study. Eur J Nucl Med Mol Imaging. 2011;38:2125–35.

    Article  CAS  PubMed  Google Scholar

  6. Kalogianni E, Ruiz DL, Corcoran BJ, Devlin LA, Vivian GC, Mulholland NJ. 177Lu-Dotatate therapy for the treatment of metastatic neuroendocrine tumours in a patient on haemodialysis—dosimetric considerations. BJR Case Rep. 2015;1(3):20150177.

    Article  PubMed  PubMed Central  Google Scholar

  7. Approved Drugs - FDA approves lutetium Lu 177 dotatate for treatment of GEP-NETS. 2018 [Internet]. Available from: https://www.fda.gov/drugs/informationondrugs/approveddrugs/ucm594105.htm.

  8. Lutathera | European Medicines Agency. 2018 [Internet]. Available from: https://www.ema.europa.eu/medicines/human/EPAR/lutathera.

  9. Helisch A, Förster GJ, Reber H, Buchholz H-G, Arnold R, Göke B, et al. Pre-therapeutic dosimetry and biodistribution of 86Y-DOTA-Phe1-Tyr3-octreotide versus 111In-pentetreotide in patients with advanced neuroendocrine tumours. Eur J Nucl Med Mol Imaging. 2004;10:1386–92.

    Google Scholar

  10. Imhof A, Brunner P, Marincek N, Briel M, Schindler C, Rasch H, et al. Response, survival, and long-term toxicity after therapy with the radiolabeled somatostatin analogue [90Y-DOTA]-TOC in metastasized neuroendocrine cancers. J Clin Oncol Off J Am Soc Clin Oncol. 2011;29:2416–23.

    Article  CAS  Google Scholar

  11. Williams LE, DeNardo GL, Meredith RF. Targeted radionuclide therapy. Med Phys. 2008;35:3062–8.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  12. Bodei L, Cremonesi M, Ferrari M, Pacifici M, Grana CM, Bartolomei M, et al. Long-term evaluation of renal toxicity after peptide receptor radionuclide therapy with 90Y-DOTATOC and 177Lu-DOTATATE: the role of associated risk factors. Eur J Nucl Med Mol Imaging. 2008;35:1847–56.

    Article  CAS  PubMed  Google Scholar

  13. Bergsma H, Konijnenberg MW, van der Zwan WA, Kam BLR, Teunissen JJM, Kooij PP, et al. Nephrotoxicity after PRRT with (177)Lu-DOTA-octreotate. Eur J Nucl Med Mol Imaging. 2016;43:1802–11.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  14. Svensson J, Berg G, Wängberg B, Larsson M, Forssell-Aronsson E, Bernhardt P. Renal function affects absorbed dose to the kidneys and haematological toxicity during 177Lu-DOTATATE treatment. Eur J Nucl Med Mol Imaging. 2015;42:947–55.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  15. Valkema R, Pauwels SA, Kvols LK, Kwekkeboom DJ, Jamar F, de Jong M, et al. Long-term follow-up of renal function after peptide receptor radiation therapy with 90Y-DOTA0,Tyr3-octreotide and 177Lu-DOTA0, Tyr3-octreotate. J Nucl Med. 2005;46:83S–91S.

    CAS  PubMed  Google Scholar

  16. Löser A, Schwarzenböck SM, Heuschkel M, Willenberg HS, Krause BJ, Kurth J. Peptide receptor radionuclide therapy with 177Lu-DOTA-octreotate: dosimetry, nephrotoxicity, and the effect of hematological toxicity on survival. Nucl Med Commun. 2018;39(3):236–46. [cited 2018 Feb 11]; Publish Ahead of Print. Available from: https://journals.lww.com/nuclearmedicinecomm/Abstract/publishahead/Peptide_receptor_radionuclide_therapy_with.98627.aspx.

  17. Sandström M, Garske-Román U, Granberg D, Johansson S, Widström C, Eriksson B, et al. Individualized dosimetry of kidney and bone marrow in patients undergoing 177Lu-DOTA-octreotate treatment. J Nucl Med Off Publ Soc Nucl Med. 2013;54:33–41.

    Google Scholar

  18. Emami B, Lyman J, Brown A, Coia L, Goitein M, Munzenrider JE, et al. Tolerance of normal tissue to therapeutic irradiation. Int J Radiat Oncol Biol Phys. 1991;21:109–22.

    Article  CAS  PubMed  Google Scholar

  19. Emami B, Purdy JA, Manolis J, Barest G, Cheng E, Coia L, et al. Three-dimensional treatment planning for lung cancer. Int J Radiat Oncol Biol Phys. 1991;21:217–27.

    Article  CAS  PubMed  Google Scholar

  20. Konijnenberg M, Melis M, Valkema R, Krenning E, de Jong M. Radiation dose distribution in human kidneys by octreotides in peptide receptor radionuclide therapy. J Nucl Med Off Publ Soc Nucl Med. 2007;48:134–42.

    CAS  Google Scholar

  21. Ljungberg M, Celler A, Konijnenberg MW, Eckerman KF, Dewaraja YK, Sjögreen-Gleisner K, et al. MIRD pamphlet no. 26: joint EANM/MIRD guidelines for quantitative 177Lu SPECT applied for dosimetry of radiopharmaceutical therapy. J Nucl Med Off Publ Soc Nucl Med. 2016;57:151–62.

    CAS  Google Scholar

  22. Garske U, Sandström M, Johansson S, Sundin A, Granberg D, Eriksson B, et al. Minor changes in effective half-life during fractionated 177Lu-Octreotate therapy. Acta Oncol. 2012;51:86–96.

    Article  CAS  PubMed  Google Scholar

  23. Schötzig U, Schrader H, Schönfeld E, Günther E, Klein R. Standardisation and decay data of 177Lu and 188Re. Appl Radiat Isot Data Instrum Methods Use Agric Ind Med. 2001;55:89–96.

    Google Scholar

  24. Beauregard J-M, Hofman MS, Pereira JM, Eu P, Hicks RJ. Quantitative (177)Lu SPECT (QSPECT) imaging using a commercially available SPECT/CT system. Cancer Imaging Off Publ Int Cancer Imaging Soc. 2011;11:56–66.

    Google Scholar

  25. Koral KF, Swailem FM, Buchbinder S, Clinthorne NH, Rogers WL, Tsui BMW. SPECT dual-energy-window compton correction: scatter multiplier required for quantification. J Nucl Med. 1990;31:90–8.

    CAS  PubMed  Google Scholar

  26. Dosimetry Toolkit - Xeleris Workstations and Applications - Nuclear Medicine - Products [Internet]. [cited 2016 Dec 19]. Available from: http://www3.gehealthcare.ca/en/products/categories/nuclear_medicine/xeleris_workstations_and_applications/dosimetry_toolkit.

  27. Chicheportiche A, Artoul F, Schwartz A, Grozinsky-Glasberg S, Meirovitz A, Gross DJ, et al. Reducing the number of CTs performed to monitor personalized dosimetry during peptide receptor radionuclide therapy (PRRT). EJNMMI Phys. 2018;5(1):10.

  28. Sandström M, Garske U, Granberg D, Sundin A, Lundqvist H. Individualized dosimetry in patients undergoing therapy with (177)Lu-DOTA-D-Phe (1)-Tyr (3)-octreotate. Eur J Nucl Med Mol Imaging. 2010;37:212–25.

    Article  PubMed  Google Scholar

  29. Bolch WE, Eckerman KF, Sgouros G, Thomas SR. MIRD pamphlet no. 21: a generalized schema for radiopharmaceutical dosimetry—standardization of nomenclature. J Nucl Med. 2009;50:477–84.

    Article  CAS  PubMed  Google Scholar

  30. Zar JH. Biostatistical Analysis. 5th edition: Pearson, Harlow; 2010

  31. Sandström M, Garske-Román U, Johansson S, Granberg D, Sundin A, Freedman N. Kidney dosimetry during 177Lu-DOTATATE therapy in patients with neuroendocrine tumors: aspects on calculation and tolerance. Acta Oncol. 2017;57(4):516–21. [cited 2017 Sep 25]; Available from: https://doi.org/10.1080/0284186X.2017.1378431.

    Article  PubMed  Google Scholar

  32. Larsson M, Bernhardt P, Svensson JB, Wängberg B, Ahlman H, Forssell-Aronsson E. Estimation of absorbed dose to the kidneys in patients after treatment with 177Lu-octreotate: comparison between methods based on planar scintigraphy. EJNMMI Res. 2012;2:49.

    Article  PubMed  CAS  PubMed Central  Google Scholar

  33. Turner JH. Outpatient therapeutic nuclear oncology. Ann Nucl Med. 2012;26:289–97.

    Article  PubMed  Google Scholar

  34. Calais PJ, Turner JH. Radiation safety of outpatient 177Lu-octreotate radiopeptide therapy of neuroendocrine tumors. Ann Nucl Med. 2014;28:531–9.

    Article  CAS  PubMed  Google Scholar

  35. Abuqbeitah M, Demir M, Uslu-Beşli L, Yeyin N, Sönmezoğlu K. Blood clearance and occupational exposure for 177Lu-DOTATATE compared to 177Lu-PSMA radionuclide therapy. Radiat Environ Biophys. 2017;57(1):55–61.

    Article  PubMed  CAS  Google Scholar

  36. Recommendations for the discharge of patients undergoing treatment with radioactive substances. RSP4. Melbourne, ARPANSA; 2002.

  37. Siegel JA, Stabin MG, Brill AB. The importance of patient-specific radiation dose calculations for the administration of radionuclides in therapy. Cell Mol Biol Noisy-Gd Fr. 2002;48:451–9.

    CAS  Google Scholar

  38. Stabin MG. Update: the case for patient-specific dosimetry in radionuclide therapy. Cancer Biother Radiopharm. 2008;23:273–84.

    Article  CAS  PubMed  Google Scholar

  39. Flux GD, Sjogreen Gleisner K, Chiesa C, Lassmann M, Chouin N, Gear J, et al. From fixed activities to personalized treatments in radionuclide therapy: lost in translation? Eur J Nucl Med Mol Imaging. 2018;45:152–4.

    Article  CAS  PubMed  Google Scholar

  40. Del Prete M, Buteau F-A, Beauregard J-M. Personalized 177Lu-octreotate peptide receptor radionuclide therapy of neuroendocrine tumours: a simulation study. Eur J Nucl Med Mol Imaging. 2017;44:1490–500.

    Article  PubMed  CAS  Google Scholar

  41. Stokke C, Gabiña PM, Solný P, Cicone F, Sandström M, Gleisner KS, et al. Dosimetry-based treatment planning for molecular radiotherapy: a summary of the 2017 report from the internal Dosimetry task force. EJNMMI Phys. 2017;4:27.

    Article  PubMed  PubMed Central  Google Scholar

Download references

Acknowledgments

The authors would like to thank Prof. Norman B. Grover for helpful discussions and suggestions.

Availability of data and materials

Patient imaging was done in the scope of the routine clinical diagnostic studies, and the raw data are stored in the hospital archiving system at the Hadassah-Hebrew University Medical Center, Jerusalem, Israel.

Author information

Authors and Affiliations

  1. Department of Nuclear Medicine & Biophysics, Hadassah-Hebrew University Medical Center, 91120, Jerusalem, Israel

    Alexandre Chicheportiche, Yodphat Krausz, Nanette Freedman & Jeremy Godefroy

  2. Neuroendocrine Tumor Unit, Endocrinology and Metabolism Department, Hadassah-Hebrew University Medical Center, 91120, Jerusalem, Israel

    Simona Grozinsky-Glasberg & David J. Gross

  3. Oncology Department and Radiation Therapy Unit, Hadassah-Hebrew University Medical Center, 91120, Jerusalem, Israel

    Asher Salmon & Amichay Meirovitz

Authors
  1. Alexandre Chicheportiche
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Simona Grozinsky-Glasberg
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. David J. Gross
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Yodphat Krausz
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Asher Salmon
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Amichay Meirovitz
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Nanette Freedman
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. Jeremy Godefroy
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

Drs. AC and JG designed this work. Drs. SG-G, Prof. DJG, AS, and AM were responsible for patient recruitment. Dr. JG and Prof. YK were in charge of imaging studies and interpretation of images. Drs. AC and NF performed dosimetry calculations. Dr. AC analyzed the data. Drs. AC and JG wrote the manuscript. Drs. SG-G, Prof. DJG, Prof. YK, and NF revised the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Alexandre Chicheportiche.

Ethics declarations

Ethics approval and consent to participate

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki declaration and its later amendments or comparable ethical standards. For this type of study, formal consent is not required.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Chicheportiche, A., Grozinsky-Glasberg, S., Gross, D.J. et al. Predictive power of the post-treatment scans after the initial or first two courses of [177Lu]-DOTA-TATE. EJNMMI Phys 5, 36 (2018). https://doi.org/10.1186/s40658-018-0234-7

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s40658-018-0234-7

Keywords
