Dosimetric impact of 3D motion-compensated SPECT reconstruction for SIRT planning

EJNMMI Physics volume 10, Article number: 8 (2023) Cite this article

Abstract

Background

In selective internal radiation therapy, 99mTc SPECT images are used to optimize patient treatment planning, but they are affected by respiratory motion. In this study, we evaluated on patient data the dosimetric impact of motion-compensated SPECT reconstruction on several volumes of interest (VOI), on the tumor-to-normal liver (TN) ratio and on the activity to be injected.

Methods

Twenty-nine patients with liver cancer or hepatic metastases treated by radioembolization were included in this study. The biodistribution of 90Y is assumed to be the same as that of 99mTc when predictive dosimetry is implemented. A total of 31 99mTc SPECT images were acquired and reconstructed with two methods: conventional OSEM (3D) and motion-compensated OSEM (3Dcomp). Seven VOI (liver, lungs, tumors, perfused liver, hepatic reserve, healthy perfused liver and healthy liver) were delineated on the CT or obtained by thresholding SPECT images followed by Boolean operations. Absorbed doses were calculated for each reconstruction using Monte Carlo simulations. Percentages of dose difference (PDD) between 3Dcomp and 3D reconstructions were estimated as well as the relative differences for TN ratio and activities to be injected. The amplitude of movement was determined with local rigid registration of the liver between the 3Dcomp reconstructions of the extreme phases of breathing.

Results

The mean amplitude of the liver was 9.5 ± 2.7 mm. Medians of PDD were closed to zero for all VOI except for lungs (6.4%) which means that the motion compensation overestimates the absorbed dose to the lungs compared to the 3D reconstruction. The smallest lesions had higher PDD than the largest ones. Between 3D and 3Dcomp reconstructions, means of differences in lung dose and TN ratio were not statistically significant, but in some cases these differences exceed 1 Gy (4/31) and 8% (2/31). The absolute differences in activity were on average 3.1% ± 5.1% and can reach 22.8%.

Conclusion

The correction of respiratory motion mainly impacts the lung and tumor doses but only for some patients. The largest dose differences are observed for the smallest lesions.

Introduction

Selective internal radiation therapy (SIRT) is a local cancer treatment used for hepatocellular carcinoma (HCC) [1], intrahepatic cholangiocarcinoma (ICC) and liver metastases (breast cancer [2, 3], neuroendocrine tumors [4], uveal melanoma [5], colorectal and pancreatic cancer [6]). It consists in injecting 90Y microspheres in the hepatic artery to deliver a high dose to the lesions. Before 90Y delivering, a planning step is performed to plan the activity to be injected [7] and to evaluate potential risk of toxicities, such as radiation pneumonitis [8, 9], following the recommendations provided in [10, 11]. During this planning step, 99mTc macroaggregated albumin (MAA) is administered to the patient and the biodistribution, assumed to be the same as the microspheres [12], is assessed from SPECT/CT images. However, these images are affected by several physical phenomena or limitations such as attenuation, scatter, resolution [13, 14] and breathing movement that deteriorate the images. While the first three phenomena are routinely accounted for by reconstruction software, breathing motion is usually not corrected. Different methods have been proposed in the literature to retrieve and correct for breathing motion in SPECT images, e.g., using external breathing monitoring device [15], fluoroscopic images [16, 17] or data-driven approaches [18, 19]. Motion correction was, for example, applied to myocardial perfusion [20, 21]. However, to our knowledge, it is not used during SIRT although the liver movement due to breathing is well known [22]. Bastiaannet et al. [23] and Lu et al. [24] studied the dosimetric impact of breathing motion on numerical phantoms (physical phantoms in [25]) and showed that it is the main undesirable effect for the quantification in radioembolization. To our knowledge, this impact has only been evaluated by Santoro et al. [25] on 12 SPECT patients images with a single liver lesion, which is not representative of all patients treated by SIRT. Such an evaluation was performed on post-treatment PET imaging [26] and has shown dose differences in the lesions and in the liver [27].

In this work, we assessed on real patient images the dosimetric impact of breathing movement during SIRT treatment planning thanks to an innovative data-driven motion-compensated method that does not require any additional material during SPECT acquisition. Absorbed dose comparisons were performed between 3D and 3D motion-compensated reconstructions [19] for several regions of interest. Prescribed activities and lung shunt fractions computed with the two methods were also compared.

Material and methods

Patients

Data from 29 patients (14 women and 15 men) treated by radioembolization between March 2019 and July 2021 were included. Eighteen patients from this cohort were also included in the study by Robert et al. [19]. The patient numbers common to both studies are bolded in Table 1. During treatment planning, patients received 243 ± 92 MBq of 99mTc-MAA and a total of 31 SPECT/CT were available. (Two patients received two treatment sessions.) Ten patients were treated for hepatocellular carcinoma (HCC), three for cholangiocarcinoma, four for metastasis of colorectal cancer (mCRC), seven for metastasis of breast cancer and five for hepatic metastasis of other cancers. Resin spheres (Sirtex™) were administered to eleven patients and glass spheres (TheraSphere™) to 18 patients. No distinction was made between patients in this study. More details are available in Table 1. The patient data included in this study comply with current regulations for human protection and GDPR regulations (MR004).

Image acquisition and reconstruction

SPECT/CT images were acquired with a two heads GE Discovery NM CT 670, using LEHR (Low Energy High Resolution) collimator and 3/8′′ thick crystal. The acquisition consisted of 60 projections over 360°, each with 128 × 128 pixels, 4.418 mm isotropic spacing, 25 s duration for each projection, in step and shoot mode. Energy windows were centered on 140.5 keV ± 20% width for primary and 120 keV ± 5% for scatter. Images were reconstructed with two methods: conventional ordered subset expectation maximization (OSEM), denoted 3D, and motion-compensated OSEM, denoted 3Dcomp [19]. In both cases, OSEM was performed with attenuation correction, dual energy window scatter correction and depth-dependent PSF correction (resolution recovery). The 3Dcomp method first consisted in extracting a breathing motion signal from the list-mode data thanks to Laplacian eigenmaps analysis. This signal was then split into 8 respiratory phases, and the acquired projections were sorted according to the phase to which they belong. 2D affine registrations were performed between each phase and the phase selected for the reconstruction. Affine transformations were applied to the list-mode data to correct the projections. The final 3D motion-compensated image was obtained by OSEM reconstruction from all motion-corrected list-mode data. 3Dcomp reconstruction can be performed on any respiratory phases. For attenuation correction, a single 3D CT acquisition was available and it was assumed that locally the CT was acquired during one of the phases of the respiratory movement. Reconstruction was hence performed on this corresponding phase, which has been visually determined from 4D SPECT gated reconstruction [28] (except for the estimation of the breathing motion amplitude). Note that, as shown in [19], motion-compensated reconstruction leads to better image quality than 4D gated reconstruction [28] because it uses all list-mode data and does not increase noise compared to 3D. All reconstructions (3D and 3Dcomp) were performed with 15 subsets and 15 iterations per subsets. Images were reconstructed with 1283 voxel grid, with spacing of 4.41806 mm. All reconstructions were performed with the RTK software [29]. No spatial filters were applied in post-reconstruction.

Volumes of interest

Seven volumes of interest (VOI) were delineated for each patient. For liver, lungs and tumor(s), manual delineations were performed on CT scans. Note that in 50% of cases, the upper quarter of the lungs is not in the field of view (15/31). The healthy liver (HL) was obtained by removing the lesions from the whole liver. The perfused liver (PL) was estimated by intersecting the volume obtained by thresholding the SPECT image with 5% of the maximum number of liver counts with the CT volume of liver. The hepatic reserve (HR) corresponded to the liver minus the perfused volume and lesions. The healthy perfused liver (HPL) was the perfused liver minus lesions [30]. When liver and lungs VOIs overlapped, voxels in common were assigned to the liver and removed from the lungs. If a patient has several distinct lesions, all are contoured.

Breathing motion amplitude estimation

A local rigid (translation only) registration of the liver VOI was performed between inhale and exhale phases 3Dcomp reconstructions. Registrations were performed with mutual information as similarity measure and done with Elastix [31]. The breathing motion amplitude was defined as the norm of the obtained 3D translation.

Dosimetry workflow and analysis

A dosimetry workflow based on Monte Carlo simulations was adapted from [32] to estimate the average absorbed doses for all VOI from 3D and 3Dcomp reconstructions. 99mTc SPECT images were normalized according to the injected activity by considering all detected counts in the liver and lungs VOIs. Monte Carlo simulations were performed via GATE [33] with 1 MBq of 90Y during 1 s and then scaled according to the activity really injected. CT images were resampled to the same voxel size as the SPECT in order to reduce the simulation time. For each SPECT, a 3D dose rate map was obtained and the mean of dose rates was computed for each VOI. The final absorbed dose per VOI was estimated by considering mono-exponential decay, with 90Y half-life of 64 h. Statistical uncertainties of the Monte Carlo simulations were lower than 1% in all ROIs, and computation times were around 10 min [32].

To compare the estimated absorbed doses for each reconstruction, percentages of dose difference (PDD) were computed for each VOI as expressed in Eq. (1) with D3D and D3Dcomp the average absorbed doses estimated with the 3D and the 3D compensated reconstructions, respectively.

$${\text{PDD}}\left( \% \right) = \frac{{\left( {{\text{D}}_{{3{\text{Dcomp}}}} \left[ {Gy} \right] - {\text{D}}_{{3{\text{D}}}} \left[ {Gy} \right]} \right)}}{{{\text{D}}_{{3{\text{D}}}} \left[ {Gy} \right]}} \times 100$$
(1)

Doses absorbed by the lungs were estimated by Monte Carlo simulations for each patient, and lung shunt fractions (LSFs) were calculated from Eq. 2, where CLungs is the number of reconstructed counts in the lungs and CLiver is the number of reconstructed counts in the liver.

$${\text{LSF}}\left( \% \right) = \frac{{{\text{C}}_{{{\text{Lungs}}}} }}{{{\text{C}}_{{{\text{Lungs}}}} + {\text{C}}_{{{\text{Liver}}}} }} \times 100$$
(2)

Tumor-to-normal ratios (TN ratios) were obtained from Eq. (3), where CT and CHL are the number of counts detected in all tumors and healthy liver, respectively. VT and VHL are volumes of all tumors and healthy liver, respectively. The densities of the tumors and the healthy liver are assumed to be the same, allowing us to use volumes instead of masses.

$${\text{TN}} = \frac{{{{{\text{C}}_{{\text{T}}} } \mathord{\left/ {\vphantom {{{\text{C}}_{{\text{T}}} } {{\text{V}}_{{\text{T}}} }}} \right. \kern-0pt} {{\text{V}}_{{\text{T}}} }}}}{{{{{\text{C}}_{{{\text{HL}}}} } \mathord{\left/ {\vphantom {{{\text{C}}_{{{\text{HL}}}} } {{\text{V}}_{{{\text{HL}}}} }}} \right. \kern-0pt} {{\text{V}}_{{{\text{HL}}}} }}}}$$
(3)

The activity to inject to the patient was computed from Monte Carlo simulations considering the absorbed dose recommendations defined in the international guidelines according the type of sphere [10, 34].

When contouring the liver and lung VOIs, some voxels may overlap. In order to verify the dosimetric impact of assigning voxels to one or the other of the two volumes, we estimated the difference in absorbed dose (DAD) between these two choices for the two available reconstructions using Eq. (4).

$${\text{DAD}}\left( {{\text{VOI}}} \right) = {\text{DV}}\;{\text{Liver}}\left( {{\text{VOI}}} \right) - {\text{DV}}\;{\text{Lungs}}\left( {{\text{VOI}}} \right)$$
(4)

where DV liver (VOI) is the absorbed dose estimated for the VOI when the overlapping voxels are assigned to the liver and DV lungs (VOI) when they are assigned to the lungs.

The percentage difference in activity (PDA) was computed for each patient between the 3D and 3Dcomp reconstructions as in Eq. (1) and was not affected by the choice of the value of prescribed dose. Normality tests of the distribution over all patients of absorbed dose and activity distributions were estimated for each reconstruction and assessed with a Shapiro–Wilk test before being compared either with a paired Wilcoxon’s test or with a paired t test (3D vs. 3Dcomp). These tests were also applied to compare lung dose and TN ratios with two reconstructions. In order to predict for which patient this respiratory motion correction would be really relevant, Spearman’s correlation test was applied between PDD of tumors and seven different parameters described next. The first parameter was the volume (1) of the tumor estimated from the CT. For the next two parameters, a distance map was calculated between the tumor and the borders of the liver. The minimum (2) and average (3) distance could be estimated. The other four parameters were: (4) the minimum distance between the top of the tumor and the liver in the cranio-caudal (CC) direction [25], (5) the amplitude of tumor movement in the CC direction, (6) the overall minimum distance between the center of mass of the tumor and the liver and (7) this same distance but only in the CC direction. Correlations were also tested on these parameters divided by the volume as proposed in [35].

Results

The mean amplitude of the movement of the liver was 9.5 ± 2.7 mm (range 3.4–16.8 mm) and that of the tumors was 10.9 ± 2.4 mm (range 5.6–17.1 mm). If we consider only the amplitudes of liver movement associated with tumor contours, considering as many times the amplitude as there are lesions, the average amplitude of the liver was 10.8 ± 2.4 mm. No statistical significant differences were observed between the amplitude of the liver and the amplitude of the tumors (two-sided paired t-test p-value = 0.474). Figure 1 illustrates, for one patient, the 3D and 3Dcomp reconstructed images with associated contours of the tumor, showing the impact of breathing motion.

Fig. 1
figure 1

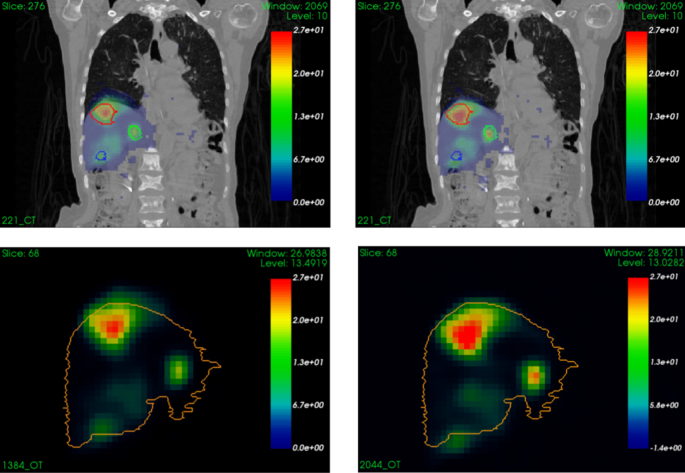

3D (left) and 3Dcomp (right) reconstructions overlapped on CT (top) and reconstructions alone. Red, green and blue contours correspond to lesion contours initially drawn on the CT image. Orange contour is the mask of the liver

Full size image

Figure 2 shows the percentages of dose difference between absorbed doses estimated from 3D and 3Dcomp reconstructions for each VOI (liver, lungs, tumor(s), PL, HR, HPL and HL). 3D and 3Dcomp absorbed dose series of lungs, PL, HR, HPL did not follow a normal distribution (Shapiro–Wilk’s test, p < 0.05), while liver, HL and tumors did (only the 3D absorbed dose series). Statistically, the averages of the differences between series were not significantly different from zero (Wilcoxon’s test p > 0.05 for lungs, PL, HR, HPL and tumors; Student’s t-test p > 0.05 for liver and HL). Median, IQR, minimum and maximum values for PDD of lesions were − 0.25%, [− 3.3%, 1.1%], − 29.0% and 23.9% .

Fig. 2
figure 2

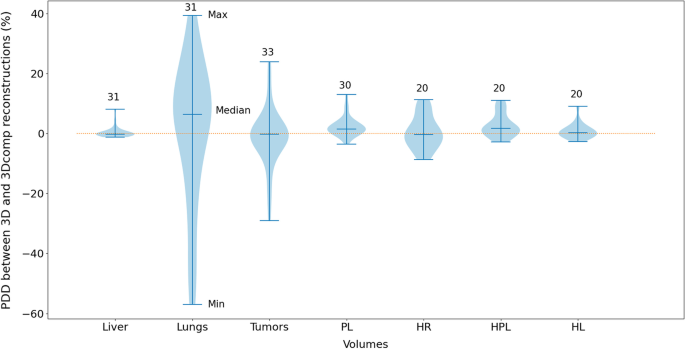

Boxplots of percentages of dose difference (PDD) between 3D and 3Dcomp reconstructions for each VOI (liver, lungs, tumors, PL, HR, HL, HPL). The number of contours used is written above each boxplot

Full size image

Figures 3, 4 and 5 show Bland–Altman plots between the 3D and 3Dcomp reconstructions of lung dose, LSF and TN ratio, respectively. Bland–Altman plots for the absorbed doses to the left (Fig. 8) and right (Fig. 9) lungs are available in Appendix. None of the series of differences and means follow a normal distribution: The limits of agreement are therefore given for information only. For lungs and tumors, the limits of agreements in the Bland–Altman plots were 2 Gy and 38 Gy. The data are available in Table 4 in Appendix. The mean, minimum and maximum doses estimated from the 3D reconstruction were 1.2 Gy, 0.06 Gy and 5.8 Gy for the left lung and 4.7 Gy, 0.2 Gy and 14.3 Gy for the right lung. There was no statistically significant difference for each lung with and without correction for respiratory motion (Wilcoxon’s test: p value > 0.05). No statistically significant correlation was found between the left and right lungs. Figures 6 and 7 represent percentages of tumor dose difference between 3D and 3Dcomp with respect to the tumor volume and amplitude of the movement of the tumors. The estimation of tumor motion was only performed for 32/33 because one of them had a too small volume which did not allow the registration between the two reconstructions and therefore the calculation of the amplitude of motion. In Fig. 6, one of the volumes was very large (1828 cm3) compared to the others and made it difficult to read the figure: this point was therefore removed for better readability.

Fig. 3
figure 3

Bland–Altman plot of the lung dose (Gy) between 3D and 3Dcomp reconstructions for each patient. D(L)3D and D(L)3Dcomp correspond to the lung dose estimated from the 3D and 3Dcomp reconstructions, respectively

Full size image
Fig. 4
figure 4

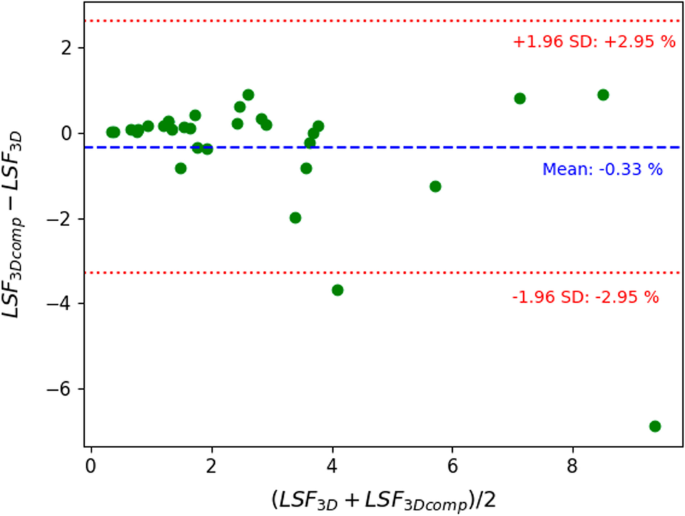

Bland–Altman plot of the LSF (%) between 3D and 3Dcomp reconstructions for each patient. LSF3D and LSF3Dcomp correspond to the LSF estimated from the 3D and 3Dcomp reconstructions, respectively

Full size image
Fig. 5
figure 5

Bland–Altman plot of the tumor-to-normal liver ratio between 3D and 3Dcomp reconstructions for patients for whom lesion contours are available. TN ratio3D and TN ratio3Dcomp correspond to the TN ratio estimated from the 3D and 3Dcomp reconstructions, respectively

Full size image
Fig. 6
figure 6

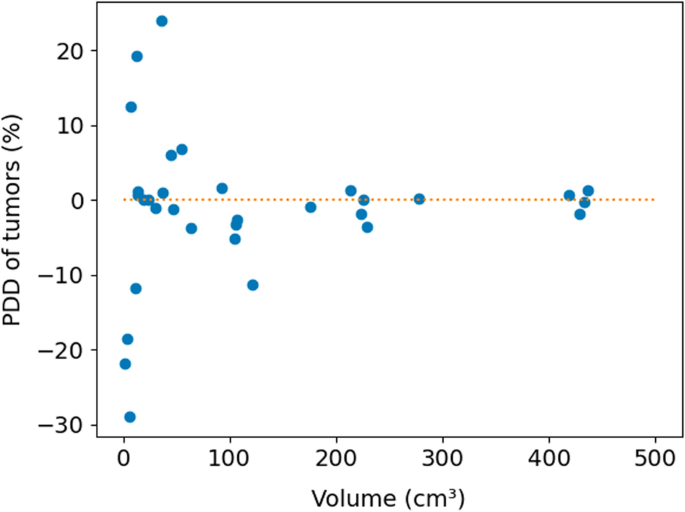

Percentages of tumor dose difference between 3D and 3Dcomp reconstructions by tumor volume

Full size image
Fig. 7
figure 7

Percentages of tumor dose difference between 3D and 3Dcomp reconstructions with respect to the amplitude of the movement

Full size image

For lungs, DAD (lungs) were superior to 1 Gy for only one patient for the two types of reconstruction. This discrepancy can be explained by the location of a lesion in the hepatic dome, at the border with the lungs, whose absorbed dose was estimated at 229 Gy.

For the liver, there was less than 5% of DAD(Liver) whatever the type of the reconstruction because the dose absorbed by the liver was much higher than that of the lungs (on average 3 Gy vs 46 Gy). More details are provided in Table 2 in Appendix.

Finally, we compared the planned injected activities with both reconstructions (Table 3). The mean and standard deviation of the absolute value of PDA were 3.1 ± 5.1% between prescribed activities obtained from 3D and 3Dcomp. The maximum absolute difference was 22.8% (1.28 GBq for 3D reconstruction vs. 1.57 GBq for 3Dcomp reconstruction) and was obtained for patient 20. Series of injected activities (3D and 3Dcomp) did not follow a normal distribution (Shapiro–Wilk’s test, p < 0.05). The average of the differences between prescribed activities was not significantly different from zero (p > 0.05 with the Wilcoxon’s test). Only two moderate statistically significant correlations (Fig. 10) could be found between PDD of tumors and 1. the minimum distance in CC direction between the upper part of the lesion and the hepatic dome (corr = − 0.38; p < 0.05) and 2. the minimum distance of the center of mass of the lesion in the CC direction and the hepatic dome (corr = − 0.38; p < 0.05).

Discussion

This paper presents the evaluation of the dosimetric impact of respiratory movement during SIRT planning. We worked on real patient data with different characteristics (number of tumors, volumes, localizations, pathologies, type of spheres) representative of the diversity of what is found in the clinic. For each, we compared the estimated doses from the 3D and 3Dcomp reconstructions as well as the TN ratio and the activity to be injected.

Few studies have been published on the subject. In [23, 24], the authors evaluated dosimetric impacts of motion by performing simulations from digital XCAT phantoms with different sets of parameters (body type, lung shunt fraction (LSF), tumor volume and localization). Likewise, Santoro et al. [25] tested a novel method to compensate for motion on a modified CIRS dynamic phantom and applied it on the data of twelve selected patients (HCC, single lesion). However, the realism of simulations and phantoms is limited (perfect respiratory cycle and simplifications in the movement, characteristics of each patient, assumption of a perfectly compensated scatter [24]). In contrast to our method based on list-mode data, Santoro et al. [25] corrected for respiratory motion by realigning the barycenters of the lesions in the projections with each other before realigning them on the CT to improve attenuation correction and VOI definitions [36]. The latter registration consisted to have the same distance between the hepatic dome defined on the CT and the top of the lesion on two imaging modalities (SPECT and CT). However, lesion contours were obtained by thresholding on projections, themselves impacted by the respiratory movement (15 s/projection vs 5 s for one respiratory cycle): They are dependent on the distribution of the detected counts and influence the registration with the CT. Here, a 4D gated reconstruction was performed to select the phase that most visually matches the CT to avoid the impact of the breathing movement. Then, a 3Dcomp reconstruction was performed to take into account all detected counts. We assumed that CT acquisition is fast enough (10–15 s in total) to correspond locally to a respiratory phase (in the region of the hepatic dome), considering that the residual motion during the CT acquisition is low. The exact impact of this assumption is currently unknown. 3Dcomp reconstruction using other breathing phases is feasible, but they will be marred by errors because of a mismatched CT, as also observed in [36]. In both studies, VOI (liver, lungs and tumors) were delineated on CT to obtain anatomical contours independent of the distribution of the radiopharmaceutical. Although some of the patients included in the Robert et al.’s [19] study are also included in this one, the results are not comparable. Firstly, the tumors are not segmented in the same way (CT vs. thresholding) and the compensation of the respiratory movement was only carried out on the end-expiratory phase in their study, unlike ours.

The median PDD was close to zero for all VOI considered except for the lungs (6.4%). The estimated absorbed doses to the lungs are overall higher with 3Dcomp reconstruction than with 3D reconstruction. Lu et al. [36] proposed an explanation of over- and underestimation: Counts in the liver that border on the lungs can be reconstructed in the lungs and not in the liver. Similarly, counts in the lungs can be reconstructed outside the lungs. Some CT images can also have motion artifacts which can be taken into account when contouring the liver (segmented livers have a larger volume than real liver volumes): This could explain the low impact of motion on the lung doses despite the movement of the liver. This is equivalent to taking an extra margin around the liver [14, 37] to account for respiratory motion. There was no statistically significant difference for lung doses between the two reconstructions (same for LSF) which is in agreement with the results of Bastiaannet et al. [23] for the LSF. However, Lu et al. [24] showed that the LSF was overestimated when the respiratory motion was not corrected. The lesions considered are only located in segments V, VI and VIII of the liver unlike ours and in particular at the level of the hepatic dome where larger dose differences are expected. Moreover, the ranges of motion used in the simulations are higher than those estimated for our patients: between 1 and 2 cm versus 0.9 cm in the cranio-caudal direction and between 0.6 and 1.2 cm versus 0.4 cm in the antero-posterior direction that could also explain differences in conclusions. There was no significant difference in the TN ratio between the two reconstructions in contrast to other authors who found an underestimation of the TN ratio in the absence of respiratory motion correction [23, 24]. In the article by Bastiaannet et al. [23], the lesions have a volume of less than 35 mL, in contrast to those of our patients (between 1.7 and 1828 mL). The volume seems to have an impact on the error made in the absence of correction of the respiratory movement (Fig. 6): The smaller the volume, the greater the error [24, 27]. For this type of system, the central spatial resolution without scatter for 99mTc at 10 cm with a LEHR collimator is 7.4 mm [38]. This implies that the partial volume effect can be particularly impactful for volumes whose dimensions are less than 2.5 times the spatial resolution, i.e., 3.3 mL. The majority of the lesions studied have a larger volume: The partial volume effect alone does not explain the dose differences observed between 3D and 3Dcomp for small volumes. The tumors had very diverse characteristics among patients, for example, in terms of volume and shape. These are likely explanations for the discrepancies observed for the TN ratio. Other studies, focused on the breathing motion impact in post-treatment [26, 27] (mathematical models and patient data), also showed that the doses to the lesions were underestimated.

On patient cohort, Santoro et al. [25] compared mean absorbed doses of lungs and tumors and showed a variability of ± 4 Gy and ± 50 Gy, respectively, which is consistent with our results (± 2 Gy and ± 38 Gy). The impact of respiratory movement on the activity to be prescribed does not appear to have been studied previously.

In this study, no significant average of differences was found between the estimated activities with each reconstruction (min: − 8.3%; median: 0.4%; max: 22.8%). Only two significant moderate correlations (p < 0.05) were found between the PDD of tumors and (1) the minimum distance between the upper part of tumor and the liver in the CC direction and (2) the minimal distance between the center of mass of the lesion and the liver in the CC direction. Globally, the means of the differences between 3D and 3Dcomp reconstructions for the absorbed doses and in particular the lungs, the TN ratios and the prescribed activities are not statistically significantly different from zero. However, for some patients, absolute lung dose differences between 1 and 4 Gy (4/31) were observed, which could change the management of patients in cases where the lung dose is close to the recommended dose tolerance limit. In this study, all patients had a low pulmonary shunt (maximum 3D lung dose: 9.2 Gy) compared to the recommended limits, so that management was not impacted by the correction of respiratory motion. For example, for patient 10, there is a factor of two between the estimated lung doses between the 3D and 3Dcomp reconstructions (8 Gy vs 4 Gy). Note that in this study, when liver and lung voxels overlapped, they were assigned to the liver. We assessed the dose difference if voxels were assigned to the liver or lungs and observed small dose differences compared to the doses in the VOIs (maximum absolute value for liver: 2.9 Gy and 1.2 Gy for lungs) with the exception of one patient for lungs. We chose to assign the voxels to the liver in order to avoid overestimating the absorbed dose to the lungs in cases where tumors are located in the liver dome. In addition, Robert et al. [19] showed that the recovery activity was better estimated with the 3Dcomp than with the 3D and 4D gated reconstructions. We still, therefore, consider relevant to apply a correction for respiratory movement in order to improve quantification.

The CT acquisition is a limitation of this work. Indeed, it has a preponderant role in the quantification because it influences the attenuation correction but also the accuracy of the VOI if the CT and the SPECT are not correctly aligned. Here, only a CT acquired in free breathing was available. We therefore assumed that locally (upper part of the liver), the CT was acquired in a single phase in order to perform a 3Dcomp reconstruction. The selection of the phase was done visually using the CT, and there may be uncertainty even though double validation has been done. However, a quantitative approach such as choosing the phase with the highest number of counts in the segmented lung mask on CT may be very sensitive to the segmentation and low number of counts in this region. In this case, the choice of criterion needs to be robust. Ideally, a 4D CT should be acquired because, in some cases, respiratory motion can create artifacts in the 3D CT. If this acquisition is not possible, we recommend acquiring breath-hold CT in order to perform the 3Dcomp reconstruction at the same respiratory phase.

A second limitation was the limited number of patients included. Indeed, patients’ data were heterogeneous (shape and volumes of tumors, pathologies, number of tumors) which makes it more difficult to establish with certainty the presence or absence of correlations. A larger-scale study could answer this question by grouping patients according to their characteristics. Segmentations of tumors were not available for all patients; therefore, the number of data available depends on VOI: Only 20 treatments out of 31 were considered to compute PDD of tumors, HL, HPL and HR contrary to liver, lungs and PL where all treatments were taken into account. Finally, multiple injection sites were required to treat some patients: In this case, we performed the calculations assuming that they had received a single overall injection.

A third limitation of this study was the relationship between the biodistribution of 99mTc-MAA and 90Y microspheres. Indeed, several authors reported a good correlation of doses to tumors in the case of HCC but have shown a weaker correlation in the case of metastatic disease [39, 40]. Similarly, the positioning of the catheter between the pre-treatment and treatment stages may influence the agreement of the predicted and measured doses [41]. The differences between 3D and 3Dcomp dosimetry were not compared to the dosimetric differences obtained between 99mTc and 90Y as this was not the focus of this study, but it is a point that would be of interest later.

Conclusion

In this study, we demonstrated the feasibility of correcting respiratory motion on real pre-treatment SPECT images for radioembolization. The method does not need additional external devices or acquisition changes. We have shown that this correction impacts the absorbed dose to the lungs (the median percentage dose difference between 3Dcomp and 3D was 6.4% for lungs) which could impact the management of some patients in cases where the dose is close to the recommended dose tolerance limit. This correction also affects the tumor dose, where the largest dose differences were estimated for the smallest lesions.

Availability of data and materials

Data and materials are available from the corresponding author on reasonable request.

References

  1. Vilgrain V, Pereira H, Assenat E, Guiu B, Ilonca AD, Pageaux GP, Sibert A, Bouattour M, Lebtahi R, Allaham W, Barraud H. Efficacy and safety of selective internal radiotherapy with yttrium-90 resin microspheres compared with sorafenib in locally advanced and inoperable. Lancet Oncol. 2017;18(12):1624–36.

    Article  CAS  Google Scholar

  2. Barakat E, Bibok A, Rishi A, Ahmed A, Frakes JM, Hoffe SE, Armaghani AJ, Soyano AE, Costa RLB, El-Haddad G, Choi J, Kis B. Transarterial yttrium-90 glass microsphere radioembolization of chemotherapy-refractory breast cancer liver metastases: results of a single institution retrospective study. Adv Radiat Oncol. 2022. https://doi.org/10.1016/j.adro.2021.100838.

    Article  Google Scholar

  3. Cheng B, Sethi I, Davisson N, Brandon D, Barron B, Galt J, Bercu Z, Schuster DM, Kokabi N. Yttrium-90 dosimetry and implications on tumour response and survival after radioembolisation of chemo-refractory hepatic metastases from breast cancer. Nucl Med Commun. 2021;42(4):402–9.

    Article  CAS  Google Scholar

  4. King J, Quinn R, Glenn DM, Janssen J, Tong D, Liaw W, Morris DL. Radioembolization with selective internal radiation microspheres for neuroendocrine liver metastases. Cancer. 2008;113(5):921–9.

    Article  Google Scholar

  5. Gonsalves CF, Eschelman DJ, Adamo RD, Anne PR, Orloff MM, Terai M, Hage AN, Yi M, Chervoneva I, Sato T. A prospective phase II trial of radioembolization for treatment of uveal melanoma hepatic metastasis. Radiology. 2019;293(1):223–31.

    Article  Google Scholar

  6. Helmberger T, Golfieri R, Pech M, Pfammatter T, Arnold D, Cianni R, Maleux G, Munneke G, Pellerin O, Peynircioglu B, Sangro B. Clinical application of trans-arterial radioembolization in hepatic malignancies in europe: first results from the prospective multicentre observational study CIRSE registry for SIR-spheres therapy (CIRT). CardioVasc Interv Radiol. 2021;44(1):21–35.

    Article  Google Scholar

  7. Garin E, Tselikas L, Guiu B, Chalaye J, Edeline J, De Baere T, Assenat E, Tacher V, Robert C, Terroir-Cassou-Mounat M, Mariano-Goulart D, Amaddeo G, Palard X, Hollebecque A, Kafrouni M, Regnault H, Boudjema K, Grimaldi S, Fourcade M, Kobeiter H, Vibert E, Le Sourd S, Piron L, Sommacale D, Laffont S, Campillo-Gimenez B, Rolland Y, Robert CR, Pracht M, Ardisson V, Lenoir L, Deschamps F, Ducreux M, Gelli M, Cassinotto C, Allimant C, Bonnot-Lours S, Marie M, Itti E, Lerman L, Abulizi M, Luciani A, Costentin CE, Milliner M. Personalised versus standard dosimetry approach of selective internal radiation therapy in patients with locally advanced. Lancet Gastroenterol Hepatol. 2021;6(1):17–29.

    Article  Google Scholar

  8. Leung TWT, Lau WY, Ho SKW, Ward SC, Chow JHS, Chan MSY, Metreweli C, Johnson PJ, Li AKC. Radiation pneumonitis after selective internal radiation treatment with intraarterial 90yttrium-microspheres for inoperable hepatic tumors. Int J Radiat Oncol Biol Phys. 1995;33(4):919–24.

    Article  CAS  Google Scholar

  9. Wright CL, Werner JD, Tran JM, Gates VL, Rikabi AA, Shah MH, Salem R. Radiation pneumonitis following yttrium-90 radioembolization: case report and literature review. J Vasc Interv Radiol. 2012;23(5):669–74.

    Article  Google Scholar

  10. Levillain H, Bagni O, Deroose CM, Dieudonné A, Gnesin S, Grosser OS, Kappadath SC, Kennedy A, Kokabi N, Liu DM, Madoff DC. International recommendations for personalised selective internal radiation therapy of primary and metastatic liver diseases with yttrium-90 resin microspheres. Eur J Nucl Med Mol Imaging. 2021;48(5):1570–84.

    Article  Google Scholar

  11. Salem R, Padia SA, Lam M, Bell J, Chiesa C, Fowers K, Hamilton B, Herman J, Kappadath SC, Leung T, Portelance L, Sze D, Garin E. Clinical and dosimetric considerations for Y90: recommendations from an international multidisciplinary working group. Eur J Nucl Med Mol Imaging. 2019;46(8):1695–704.

    Article  Google Scholar

  12. Knešaurek K, Tuli A, Pasik SD, Heiba S, Kostakoglu L. Quantitative comparison of pre-therapy 99mTc-macroaggregated albumin SPECT/CT and post-therapy PET/MR studies of patients who have received intra-arterial radioembolization therapy with 90Y microspheres. Eur J Radiol. 2018;109:57–61.

    Article  Google Scholar

  13. Zeintl J, Vija AH, Yahil A, Hornegger J, Kuwert T. Quantitative accuracy of clinical 99mTc SPECT/CT using ordered-subset expectation maximization with 3-dimensional resolution recovery, attenuation, and scatter correction. J Nucl Med. 2010;51(6):921–8.

    Article  Google Scholar

  14. Allred JD, Niedbala J, Mikell JK, Owen D, Frey KA, Dewaraja YK. The value of 99mTc-MAA SPECT/CT for lung shunt estimation in 90Y radioembolization: a phantom and patient study. EJNMMI Res. 2018. https://doi.org/10.1186/s13550-018-0402-8.

    Article  Google Scholar

  15. Beach RD, Gifford HC, Shazeeb S, Bruyant PP, Feng B, Gennert MA, Nadella S, King MA. Stereo-infrared tracking to monitor and characterize rigid-body motion and respiration during cardiac SPECT imaging: Progress towards robust clinical utilization. IEEE Nucl Sci Symp Conf Rec. 2005;3:1731–5.

    Google Scholar

  16. Dietze MMA, Bastiaannet R, Kunnen B, van der Velden S, Lam MGEH, Viergever MA, de Jong HWAM. Respiratory motion compensation in interventional liver SPECT using simultaneous fluoroscopic and nuclear imaging. Med Phys. 2019;46(8):3496–507.

    Article  CAS  Google Scholar

  17. Dietze MMA, Kunnen B, Lam MGEH, De Jong HWAM. Interventional respiratory motion compensation by simultaneous fluoroscopic and nuclear imaging: a phantom study. Phys Med Biol. 2021. https://doi.org/10.1088/1361-6560/abe556.

    Article  Google Scholar

  18. Sanders JC, Ritt P, Kuwert T, Vija AH, Maier AK. Fully automated data-driven respiratory signal extraction from spect images using laplacian eigenmaps. IEEE Trans Med Imaging. 2016;35(11):2425–35.

    Article  Google Scholar

  19. Robert, A., Rit, S., Baudier, T., Jomier, J., Sarrut, D.: Data-driven motion compensated SPECT reconstruction for liver radioembolization. In Proceedings of the 16th international meeting on fully 3D image reconstruction in radiology and nuclear medicine (2021)

  20. Kortelainen MJ, Koivumäki TM, Vauhkonen MJ, Hakulinen MA. Effect of respiratory motion on cardiac defect contrast in myocardial perfusion SPECT: a physical phantom study. Ann Nucl Med. 2019;33(5):305–16.

    Article  Google Scholar

  21. Kovalski G, Israel O, Keidar Z, Frenkel A, Sachs J, Azhari H. Correction of heart motion due to respiration in clinical myocardial perfusion SPECT scans using respiratory gating. J Nucl Med. 2007;48(4):630–6.

    Article  Google Scholar

  22. Brandner ED, Wu A, Chen H, Heron D, Kalnicki S, Komanduri K, Gerszten K, Burton S, Ahmed I, Shou Z. Abdominal organ motion measured using 4D CT. Int J Radiat Oncol Biol Phys. 2006;65(2):554–60.

    Article  Google Scholar

  23. Bastiaannet R, Viergever MA, De Jong HWAM. Impact of respiratory motion and acquisition settings on SPECT liver dosimetry for radioembolization. Med Phys. 2017;44(10):5270–9.

    Article  CAS  Google Scholar

  24. Lu Z, Chen G, Lyu Y, Chen Y, Mok GSP. Technical note: respiratory impacts on static and respiratory gated 99m tc-maa spect/ct for liver radioembolization—a simulation study. Med Phys. 2022. https://doi.org/10.1002/mp.15682.

    Article  Google Scholar

  25. Santoro M, Della Gala G, Paolani G, Zagni F, Strolin S, Civollani S, Calderoni L, Cappelli A, Mosconi C, Lodi Rizzini E, Tabacchi E, Morganti AG, Fanti S, Golfieri R, Strigari L. A novel tool for motion-related dose inaccuracies reduction in 99mTc-MAA SPECT/CT images for SIRT planning. Phys Med. 2022;98:98–112.

    Article  Google Scholar

  26. Osborne DR, Acuff SN, Neveu ML, Syed M, Kaman AD, Fu Y. Feasibility assessment of yttrium-90 liver radioembolization imaging using amplitude-based gated PET/CT. Nucl Med Commun. 2018;39(3):222–7.

    Article  CAS  Google Scholar

  27. Ausland L, Revheim ME, Skretting A, Stokke C. Respiratory motion during 90Yttrium PET contributes to underestimation of tumor dose and overestimation of normal liver tissue dose. Acta Radiol. 2018;59(2):132–9.

    Article  Google Scholar

  28. Robert A, Rit S, Baudier T, Jomier J, Sarrut D. Data-driven respiration-gated spect for liver radioembolization. IEEE Trans Radiat Plasma Med Sci. 2021. https://doi.org/10.1109/TRPMS.2021.3137990.

    Article  Google Scholar

  29. Rit S, Vila Oliva M, Brousmiche S, Labarbe R, Sarrut D, Sharp GC. The Reconstruction Toolkit (RTK), an open-source cone-beam CT reconstruction toolkit based on the Insight Toolkit (ITK). J Phys Conf Ser. 2014. https://doi.org/10.1088/1742-6596/489/1/012079.

    Article  Google Scholar

  30. Garin E, Palard X, Rolland Y. Personalised dosimetry in radioembolisation for hcc: Impact on clinical outcome and on trial design. Cancers. 2020;12(6):1–17.

    Article  Google Scholar

  31. Klein S, Staring M, Murphy K, Viergever MA, Pluim JPW. Elastix: a toolbox for intensity-based medical image registration. IEEE Trans Med Imaging. 2010;29(1):196–205.

    Article  Google Scholar

  32. Vergnaud L, Giraudet A-L, Moreau A, Salvadori J, Imperiale A, Baudier T, Badel J-N, Sarrut D. Patient-specific dosimetry adapted to variable number of SPECT/CT time-points per cycle for 177Lu-DOTATATE therapy. EJNMMI Phys. 2022. https://doi.org/10.1186/s40658-022-00462-2.

    Article  Google Scholar

  33. Sarrut D, Bała M, Bardiès M, Bert J, Chauvin M, Chatzipapas K, Dupont M, Etxebeste A, Fanchon LM, Jan S, Kayal G, Kirov AS, Kowalski P, Krzemien W, Labour J, Lenz M, Loudos G, Mehadji B, Ménard L, Morel C, Papadimitroulas P, Rafecas M, Salvadori J, Seiter D, Stockhoff M, Testa E, Trigila C, Pietrzyk U, Vandenberghe S, Verdier M-A, Visvikis D, Ziemons K, Zvolský M, Roncali E. Advanced Monte Carlo simulations of emission tomography imaging systems with GATE. Phys Med Biol. 2021;66(10):10. https://doi.org/10.1088/1361-6560/abf276.

    Article  Google Scholar

  34. Weber M, Lam M, Chiesa C, Konijnenberg M, Cremonesi M, Flamen P, Gnesin S, Bodei L, Kracmerova T, Luster M, Garin E, Herrmann K. Eanm procedure guideline for the treatment of liver cancer and liver metastases with intra-arterial radioactive compounds. Eur J Nucl Med Mol Imaging. 2022;49(5):1682–99.

    Article  CAS  Google Scholar

  35. Kruis MF, Van De Kamer JB, Houweling AC, Sonke JJ, Belderbos JSA, Van Herk M. PET motion compensation for radiation therapy using a CT-based mid-position motion model: methodology and clinical evaluation. Int J Radiat Oncol Biol Phys. 2013;87(2):394–400.

    Article  Google Scholar

  36. Lu Z, Chen G, Lin KH, Wu TH, Mok GSP. Evaluation of different ct maps for attenuation correction and segmentation in static 99mTc-MAA SPECT/CT for 90Y radioembolization treatment planning: a simulation study. Med Phys. 2021;48(7):3842–51.

    Article  CAS  Google Scholar

  37. Kao YH, Magsombol BM, Toh Y, Tay KH, Chow PKH, Goh ASW, Ng DCE. Personalized predictive lung dosimetry by technetium-99m macroaggregated albumin spect/ct for yttrium-90 radioembolization. EJNMMI Res. 2014;4(1):1–12.

    Article  CAS  Google Scholar

  38. Peters SMB, van der Werf NR, Segbers M, van Velden FHP, Wierts R, Blokland KJAK, Konijnenberg MW, Lazarenko SV, Visser EP, Gotthardt M. Towards standardization of absolute SPECT/CT quantification: a multi-center and multi-vendor phantom study. EJNMMI Phys. 2019. https://doi.org/10.1186/s40658-019-0268-5.

    Article  Google Scholar

  39. Jadoul A, Bernard C, Lovinfosse P, Gérard L, Lilet H, Cornet O, Hustinx R. Comparative dosimetry between 99mTc-MAA SPECT/CT and 90Y PET/CT in primary and metastatic liver tumors. Eur J Nucl Med Mol Imaging. 2020;47(4):828–37.

    Article  CAS  Google Scholar

  40. Garin E, Rolland Y, Laffont S, Edeline J. Clinical impact of 99mTc-MAA SPECT/CT-based dosimetry in the radioembolization of liver malignancies with 90Y-loaded microspheres. Eur J Nucl Med Mol Imaging. 2016;43(3):559–75.

    Article  CAS  Google Scholar

  41. Thomas MA, Mahvash A, Abdelsalam M, Kaseb AO, Kappadath SC. Planning dosimetry for 90Y radioembolization with glass microspheres: evaluating the fidelity of 99mTc-MAA and partition model predictions. Med Phys. 2020;47(10):5333–42.

    Article  CAS  Google Scholar

Download references

Acknowledgements

Not applicable.

Funding

This work was performed within the framework of the SIRIC LYriCAN Grant INCa-INSERM-DGOS-12563, the LABEX PRIMES (ANR-11-LABX-0063) of Universit´ de Lyon, within the program “Investissements d’Avenir” (ANR-11-IDEX-0007) operated by the ANR, and the POPEYE ERA PerMed 2019 project (ANR-19-PERM-0007-04).

Author information

Authors and Affiliations

  1. CREATIS; CNRS UMR 5220; INSERM U 1044; Université de Lyon; INSA-Lyon, Université Lyon 1, Lyon, France

    Laure Vergnaud, Antoine Robert, Thomas Baudier, Simon Rit & David Sarrut

  2. Centre de Lutte Contre Le Cancer Léon Bérard, Lyon, France

    Laure Vergnaud, Thomas Baudier, Sandrine Parisse-Di Martino, Philippe Boissard, Jean-Noël Badel & David Sarrut

Authors
  1. Laure Vergnaud
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Antoine Robert
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Thomas Baudier
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Sandrine Parisse-Di Martino
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Philippe Boissard
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Simon Rit
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Jean-Noël Badel
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. David Sarrut
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

LV and DS performed all dosimetric calculations using Monte Carlo simulations and defined the method. AR and SR launched the reconstructions using the algorithms they had previously developed. TB recovered the data and helped for the implementation of python codes. SP followed and treated patients and prescribed SPECT/CT images. LV, DS, PB and JN were involved in the analysis of the results. LV and DS wrote most of the text. All authors read, corrected and approved the final manuscript.

Corresponding author

Correspondence to Laure Vergnaud.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Competing interests

Dr. Parisse-Di Martino is a consultant for Sirtex. The authors declare that they have no other potential competing interests.

Consent for publication

Informed written consent was obtained from all individual participants included in the study.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendix

Appendix

(See Figs. 8, 9, 10 and Tables 1, 2, 3, 4).

Fig. 8
figure 8

Bland–Altman plot of the left lung dose (Gy) between 3D and 3Dcomp reconstructions for each patient. D(LL)3D and D(LL)3Dcomp correspond to the left lung dose estimated from the 3D and 3Dcomp reconstructions, respectively

Full size image
Fig. 9
figure 9

Bland–Altman plot of the right lung dose (Gy) between 3D and 3Dcomp reconstructions for each patient. D(RL)3D and D(RL)3Dcomp correspond to the right lung dose estimated from the 3D and 3Dcomp reconstructions, respectively

Full size image
Fig. 10
figure 10

Percentages of tumor dose difference according to the minimum distance between the upper part of the lesion and the hepatic dome in cranio-caudal direction (top) and the minimum distance between the center of mass of the lesion and the hepatic dome in cranio-caudal direction (bottom)

Full size image
Table 1 Characteristics (sex, type of sphere, number of lesions, their volumes and strategy of treatment) of patients included in this study
Full size table
Table 2 DAD calculated for the liver and the lungs for the two reconstructions (3D and 3Dcomp)
Full size table
Table 3 Activities to be prescribed for each patient and each reconstruction (3D and 3Dcomp) estimated from international recommendations [10, 34]
Full size table
Table 4 Table of estimated absorbed doses to lungs and tumors from 3D and 3Dcomp reconstructions
Full size table
